Edgecore Compatible 400GBASE-SR8 Optics | FiberMall

Add to wish

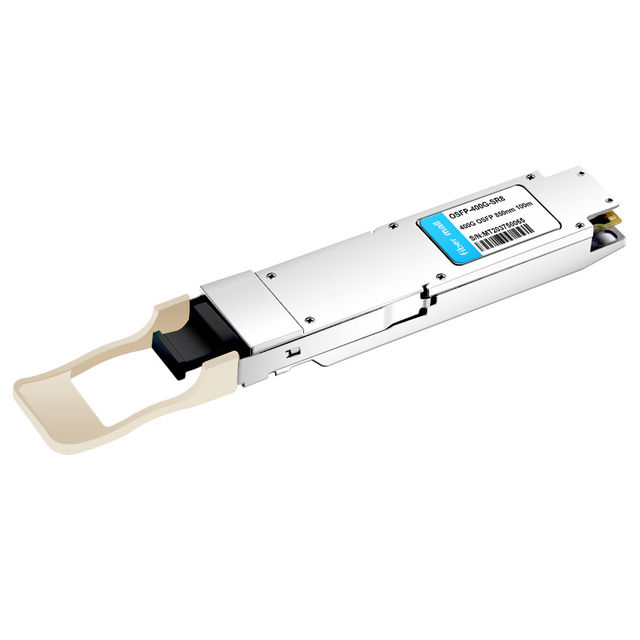

Edgecore Compatible 400G OSFP SR8 PAM4 850nm MTP/MPO-16 100m OM3 MMF FEC Optical Transceiver Module

Name: Edgecore Compatible 400G OSFP SR8 PAM4 850nm MTP/MPO-16 100m OM3 MMF FEC Optical Transceiver Module
Brand: fibermall
SKU: 20156
Price: 480.00 USD
Availability: OutOfStock
Rating: 5 (5 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:20156

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall; Arista Networks; Edgecore

Transceiver Type: OSFP-400G-SR8-EC; OSFP-400G-DR4-EC

FM PN:

OSFP-400G-SR8

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Edgecore Compatible 400G SR8 OSFP PAM4 Optical Transceiver Module (850nm MTP/MPO-16 MMF 100m OM3 with FEC DDM)????

Product Details

Edgecore Compatible	Edgecore	Vendor Name	FiberMall
Form Factor	OSFP	Max Data Rate	425Gbps
Max Distance	100m on OM3	Modulation Format	PAM4
Host Required	FEC	Connector	MTP/MPO-16
Voltage Supply	3.3V	Cable Type	MMF
DDM Support	Yes	Transmitter Type	850nm VCSEL
Receiver Type	PIN	TX Power	-6.0~+4.0dBm
Receiver Sensitivity	< -7.0dBm	Operation Temperature	0 to 70°C (32 to 158°F)
Maximum Power	< 12.0W	Protocols	OSFP MSA, IEEE 802.3bs
Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects, Enterprise Networking

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

400G OSFP

Product Features

v OSFP MSA compliant

v 8 parallel lanes on 850nm center wavelength

v Compliant to IEEE 802.3bs Specification

v Up to 100m transmission on multi-mode fiber (MMF) OM3 with FEC

v Operating case temperature: 0 to 70°C

v 8x53.125Gb/s electrical interface (400GAUI-8)

v Data Rate 53.125Gbps (PAM4) per channel.

v Maximum power consumption 12W

v MPO-16 connector

v RoHS compliant

Applications

v Data Center Interconnect

v 400G Ethernet

v Infiniband interconnects

v Enterprise networking
