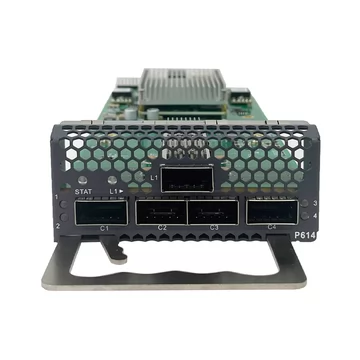

400G Muxponder Service Card: 4x100G QSFP28 to 1x400G QSFP-DD, 1 Slot

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:40113
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
FM PN:
4Q28-QDD-400G
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

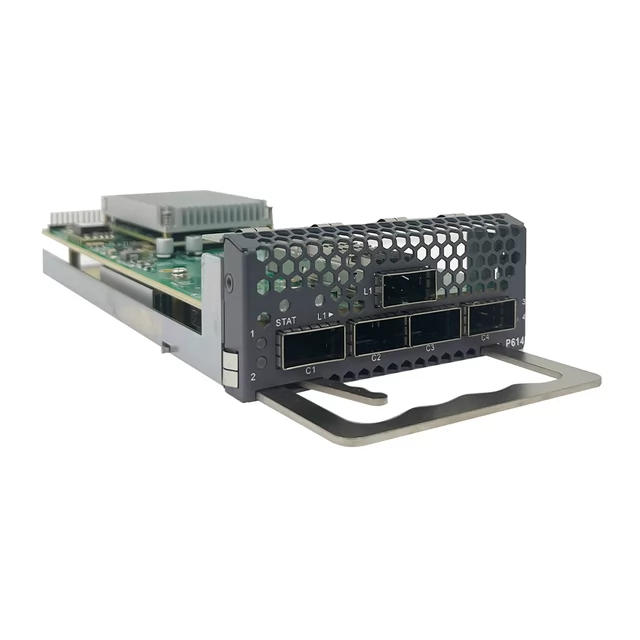

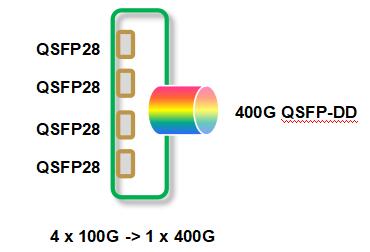

The 400G Muxponder Service Board (P614) from FiberMall. supports mapping 4x100G signals received on the customer side into one OTUC4 signal and interconverting the OTUC4 signal with ITU-T compliant WDM wavelength optical signals. The line side adopts pluggable QSFP-DD DCO to realize ultra-long distance transmission based on advanced technologies such as coherent detection.

400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall


400G Muxponder Service Card

Occupied slot

1/4 slot

Line side

1 QSFP-DD optical port: using 400G QSFP-DD DCO module, pluggable

Support wavelength adjustable, range covering 191.35~196.1 THz

Support adjustable luminous power (-13~-9dBm range)

Support 100G~400G rate adjustable

Client-side

4 QSFP28 optical ports pluggable

OTN function

Adoption of ITU-T G709 recommended frame format and overhead handling

The ODUk (k=C4) layer supports functions such as PM

The OTUk (k=C4) layer supports the SM function

Supported service Types

100GE, 100GE FlexE (Unware)

Loopback

Supports line-side and client-side loopback

AL

Support

LLDP

Normal Ethernet support

Protection function

working with the optical protection board, it can realize no sensing on the client side when protection is reversed

Performance monitoring and alarm monitoring

Support line-side OTN layer performance monitoring and alarm monitoring function

Supports client-side Ethernet LF/RF alarms

Supports optical channel OSNR, temperature, current, optical power monitoring, etc.

Supports Ethernet RMON monitoring

Supports Ethernet PCS layer performance statistics



Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall

FM-OTN Systems

Save Optical Fiber In Huge Bandwidth Need

400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall
40 channels system
Access capacity:80G
400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall
40 channels system
Access capacity:160G
400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall
40/48/80/96 channels system
Access capacity
400G 960G 4T 9.6T

WDM Gets Down To The Edge And Provides Limitless Bandwidth Resources In Limited Fiber

400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall

FiberMall FM-OTN System Includes the Following Two Parts

Customized Solutions, Self-help Selection of Our FM-OTN System Function Modules

OTN Platform

400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall
1 Main Chassis 1U/2U/5U
400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall
2 Power Supply Module
400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall
3 Network Management Unit

OTN Function Module

400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall
Transponder (OEO)
400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall
Amplifier Modules
400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall
Dispersion Compensation
400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall
Une Protection

our advantages

400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall

Short Lead Time

Fast Delivery
400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall

Professional Service

Technical Support
400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
400G Muxponder Service Card 1 Slot QSFP28 to QSFP-DD | FiberMall

Premium Quality

High stability

Practical Application Demonstration

As a kind of transmission technology with huge capacity and long-distance coverage is now widely used in the backbone, convergence and access layer of metropolitan area network.
