NVIDIA MMS1Z00-NS400 400Gbase QSFP112 DR4 Module | FiberMall

Add to wish

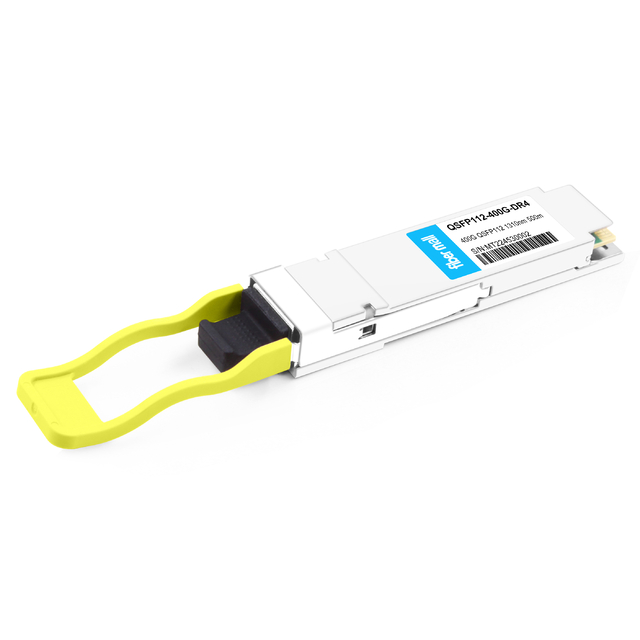

NVIDIA MMS1Z00-NS400 Compatible 400G NDR QSFP112 DR4 PAM4 1310nm 500m MPO-12 with FEC Optical Transceiver Module

Name: NVIDIA MMS1Z00-NS400 Compatible 400G NDR QSFP112 DR4 PAM4 1310nm 500m MPO-12 with FEC Optical Transceiver Module
Brand: fibermall
SKU: 19369
Price: 800.00 USD
Availability: OutOfStock
Rating: 4.7 (3 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:19369

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: NVIDIA

Transceiver Type: MMA1Z00-NS400; MMA4Z00-NS400; MMS1Z00-NS400; MMS4X00-NS400

FM PN:

QSFP112-400G-DR4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

NVIDIA MMS1Z00-NS400 Compatible 400G NDR QSFP112 DR4 PAM4 Optical Transceiver Module (1310nm MTP/MPO12 SMF 500m with KP4 FEC DDM)

The QSFP112 4x100Gbps transceiver module is designed for 400G Ethernet links over 500m of single-mode fiber. The module contains 4 parallel channels at a center wavelength of 1310nm, each operating at 106.25G. On the receiver path, 4 photodiodes and a 4-channel TIA array are used, along with PAM4 re-timers.

Product Details

NVIDIA Compatible	MMS1Z00-NS400	Vendor Name	FiberMall
Form Factor	QSFP112	Max Data Rate	425Gbps
Wavelength	1310nm	Max Distance	500m
Modulation Format	PAM4	Host Required	FEC
Connector	MTP/MPO-12	Voltage Supply	3.3V
Cable Type	SMF	DDM Support	Yes
Transmitter Type	1310nm EML	Receiver Type	PIN
TX Power	-2.9~+4.0dBm	Receiver Sensitivity	< -5.9dBm
Operation Temperature	0 to 70°C (32 to 158°F)	Maximum Power	< 10.5W
Protocols	QSFP112 MSA, IEEE 802.3bs	Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects

2x400G to 400G Links

400GIB/EN Switches to 2 Connectx-7 and BIueField-3

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment, we will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding (EEPROM Programming)

: Testing system

FiberMall's OSFP series products incorporate advanced technology and design, boasting advantages such as high efficiency, density, reliability, and low power consumption. They stand as an ideal choice for high-speed data transmission.

Switch Introduction

NVIDIA Quantum-2 Switches

Network Card Introduction

Network Card List

Notes:

1. 100G can be supported as either 4x25G NRZ or 2x50G.

2. 200G can be supported as either 4x50G or 2x100G.

3. 400G is supported as 4x100G.

4. QSFP112 is backwards compatible with QSFP56 and QSFP28.

Switch to Switch (NDR) - Optics

Switch to Switch (NDR) - Copper

Switch to Switch (NDR) - Active Copper & Direct Attached Copper

Switch to Switch (NDR) - HDR&EDR

Switch to HCA

Switch to HCA (NDR) - Optics

Switch to HCA (NDR) - Copper

Switch-to-DGX H100 GPU Systems

	OSFP-400G-DR4-FLT	QSFP112-400G-DR4
NVIDIA Compatible	MMS4X00-NS400	MMS1Z00-NS400
Vendor Name	FiberMall	FiberMall
Form Factor	OSFP	QSFP112
Max Data Rate	425Gbps	425Gbps
Wavelength	1310nm	1310nm
Max Distance	500m	500m
Modulation Format	PAM4	PAM4
Host Required	FEC	FEC
Connector	MTP/MPO-12 APC	MTP/MPO-12
Voltage Supply	3.3V	3.3V
Cable Type	SMF	SMF
DDM Support	Yes	Yes
Transmitter Type	1310nm EML	1310nm EML
Receiver Type	PIN	PIN
TX Power	-2.9~+4.0dBm	-2.9~+4.0dBm
Receiver Sensitivity	< -4.4dBm	< -5.9dBm
Operation Temperature	0 to 70°C (32 to 158°F)	0 to 70°C (32 to 158°F)
Maximum Power	< 12.0W	< 10.5W
Protocols	OSFP MSA, IEEE 802.3bs	QSFP112 MSA, IEEE 802.3bs
Application	400G Ethernet, Datacenter Enterprise Networking, Infiniband Interconnects	400G Ethernet, Data Center Interconnect, Infiniband Interconnects

Product Features

v Supports 425Gbps

v Single 3.3V Power Supply

v 4x106.25Gbps (PAM4) electrical interface

v QSFP112 MSA, RoHS Compliant

v Up to 500m over SMF with KP4 FEC supported at the Host side

v Maximum power consumption 10.5W

v Supports Data Center Interconnect, 4x100G-DR, Infiniband interconnects, Enterprise networking

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Related Info

Questions & Answers
Ask a Question

No data

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

C***r

United States

Verified Purchase

4.0

2023-08-09

Deploying the NVIDIA MMS1Z00-NS400 module in our network backbone has revolutionized our network. 400G speeds aren't just a number, they're real performance that we've seen firsthand. Data-intensive tasks that were bottlenecked in our previous setup now run without a hitch, demonstrating the true capabilities of NDR technology

3 Helpful vote Comments

H***n

United States

Verified Purchase

5.0

2023-07-31

We've been testing the long-haul data transfer capabilities of 400G DR4 modules and the results have been impressive. Even over distances well outside the standard range, signal integrity remained stable without any noticeable latency issues. The module is a perfect fit for our growing metro network.

4 Helpful vote Comments

D***e

United States

Verified Purchase

5.0

2023-03-06

I had some technical problems deploying the NVIDIA MMS1Z00-NS400 module. Their knowledgeable and responsive support team made the process much smoother. It's reassuring to know that the technical support for this product is as reliable as the hardware itself.

2 Helpful vote Comments
