100G SOA 1U 1 in 1 out Optical Amplifier O-band 1310nm | FiberMall

Add to wish

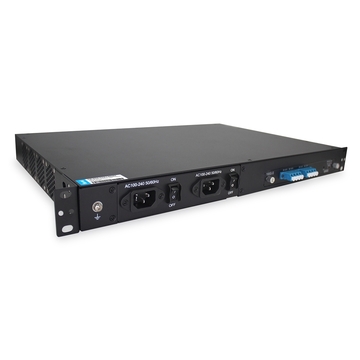

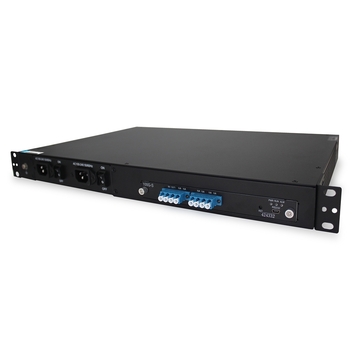

O-band 100G 1310nm 1U 1 in 1 out ACC and APC SOA Optical Amplifier

Name: O-band 100G 1310nm 1U 1 in 1 out ACC and APC SOA Optical Amplifier
Brand: fibermall
SKU: 40101
Price: 2100.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:40101

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall

FM PN:

FM-SOA-CH1-LWDM4

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to Canada Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

100G 1290~1320nm SOA Optical Amplifier 1U 1 in 1 out

Product Details

Fiber Mall P/N	FM-SOA-CH1-LWDM4	Wavelength	1290~1320nm
Rate	40G/100G	Total Input power	-20~-10dBm
Saturation Output Power	+10dBm	Gain	+14dB
Gain ripple	+7.5dB	Noise Figure	+2dB
PDG	-5 to 50°C	Operating Temperature	-40 to 85°C
Operating Humidity	+5 to 95°C	Storage Temperature	220VAC, -48VDC
Power Consumption	10W	Dimension	1U 19" 482.6x245x43.6nm

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

: Short Lead Time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Functional structure

Application Scene

Case 1: 100G long distance optical link transmission

The transmission distance of traditional 100GBese-LR4/ER4/ZR4 optical link is limited to 10km. In the transmission of long distance or high loss optical fibers, SOA optical amplifier can be configured to amplify the weak optical power signal on the receiving side to meet the receiving requirements of the equipment.

Case 2: Data link acquisition amplification

In the application of data link acquisition, the optical signal of 100G replication link should usually go through a secondary splitting. The SOA optical amplifier can be configured to amplify the optical signal of the replication link before secondary splitting to ensure that the optical signal after secondary splitting meets the transmission requirements.

SOA Amplifier

Product Features

v Support O-band, 1260~1320nm

v Max output power 13dBm

v Support ACC and AGC

v 220VAC or -49VDC power supply
