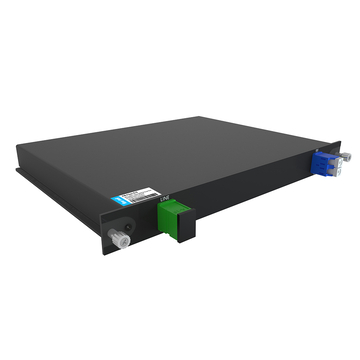

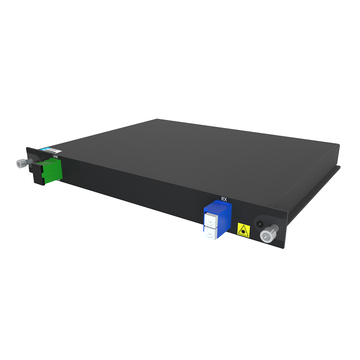

40G QSFP+ or 100G QSFP28 LR4 ER4 ZR4 Dual Fiber To Single Fiber Converter (1310nm, LC/UPC, SC/APC, SMF-28e)
Using dual-fiber to single-fiber converters, 40G QSFP+ LR4 and 100G QSFP28 LR4 can transmit 10km on a single-core fiber; 40G QSFP+ ER4 and 100G QSFP28 ER4 can transmit 30km on a single-core fiber; 40G QSFP+ ZR4 and 100G QSFP28 ZR4 can transmit 50km on a single-core fiber.
| Wavelength | 1260~1340nm | Rate | 40G/100G |
| Insertion Loss | ≤ 1dB | Technology | TFF (Thin Film Filter) |
| Line Insertion Loss | ≤ 2.0dB | Isolation | ≥35dB |
| Polarization Dependent Loss | ≤ 0.1ps | Return Loss | ≥ 45dB |
| TDL (dB) | ≤0.15dB | PMD (ps) | ≤0.055nm |
| Directivity | ≥ 45dB | Power handling | ≤500mW |
| Fiber Type | SMF-28e | Connector | LC/UPC, SC/APC |
| Temperature | -40 to 85°C | Net Weight | LGX BOX : 0.5KG |
| Dimensions (HxWxD) | LGX BOX: 214.5*150*20mm |
Product Features
v Supports 40G/100G LR4, ER4, ZR4, dual fiber to single fiber
v Operation wave 1260~1340nm
v TX/RX Port: LC Connector; Line Port SC/APC
v A passive device, Low Insertion Loss
