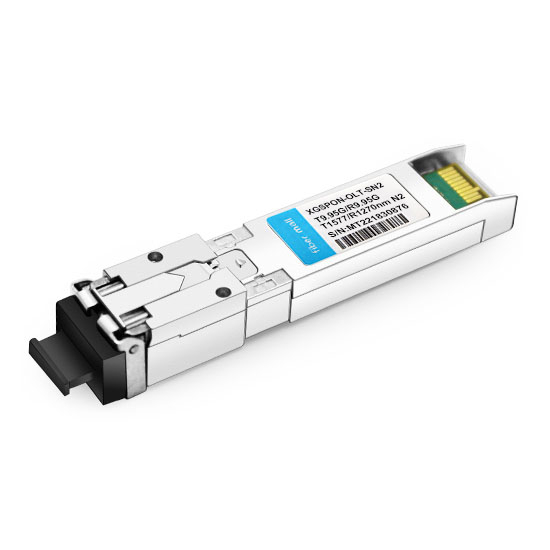

| NOKIA Compatible | 3FE46232BAAA | Vendor Name | FiberMall |
| Application | XGSPON OLT | ODN Class | N2 |
| Wavelength | TX 1577nm/RX 1270nm | Data Rate | TX 9.95G/RX 9.95G/RX 2.488G |
| TX Power | +4.0~+7.0dBm | Receiver Sensitivity | <-29.5dBm(2.5G) <-28.0dBm(10G) |
| Package | SFP+ | Interface | SC/UPC |
| Cable Type | SMF | Max Distance | 20km |
| Operation Temperature | 0 °C to 70 °C | Protocols | ITU-T G.987.2, G.9807.1 |
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, then test them on the corresponding switches to ensure that our products are 100% compatible with your system. |
Product Features
v 1577nm Tx and 1270nm Rx Bidirectional Transceiver
v Industry Leading Low Power Consumption
v Excellent EMI Immunity
v SC/UPC Optical Interface
v Transmitter Characteristics:9.953Gb/s Tx CW Mode Data Rate,1577 nm CW Mode EML
v Receiver Characteristics: 9.953Gb/s, 2.488 Gb/s Rx Burst Mode Data Rate, 1270 nm APD Receiver
v Case temperature range: 0°C to 70 °C
v DDMI Support
v Digital RSSI
v RoHS Compliance
Applications
v Symmetric XGS-PON Access Networks
v Asymmetric XG-PON Access Networks
v FTTH
v FTTB
