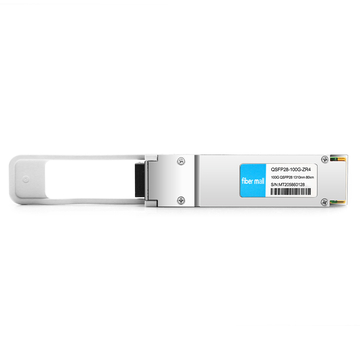

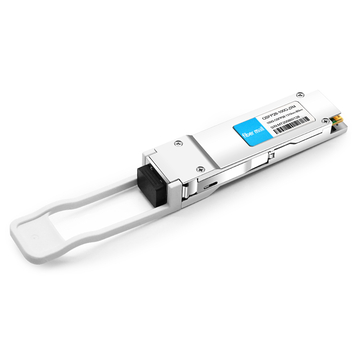

100G QSFP28 ZR4 is designed for 80km optical communication applications. This module contains 4- a lane optical transmitter, a 4-lane optical receiver, and a module management block including 2 wire serial interface. The optical signals are multiplexed to a single-mode fiber through an industry-standard LC connector.
| Juniper Networks Compatible | QSFP-100G-ZR4 | Vendor Name | FiberMall |
| Form Factor | QSFP28 | Max Data Rate | 103.125Gbps |
| Wavelength | 1295.56nm, 1300.05nm 1304.58nm, 1309.14nm | Max Distance | 80km |
| Connector | Duplex LC | Transmitter Type | EML |
| Cable Type | SMF | Receiver Type | SOA + PIN |
| TX Power | +2.0~+6.5dBm | Receiver Sensitivity | < -28dBm |
| Protocols | 100G Ethernet, QSFP28 MSA Compliant | Operation Temperature | 0 to 70°C (32 to 158°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v QSFP28 MSA compliant
v 4 LAN-WDM lanes MUX/DEMUX design
v 4x25G electrical interface
v Maximum power consumption 6.5W
v Supports 103.125Gb/s aggregate bit rate
v Up to 80km transmission on single-mode fiber
v Single 3.3V power supply
v Supports 100GBASE-ZR4 100G Ethernet, Telecom networking
