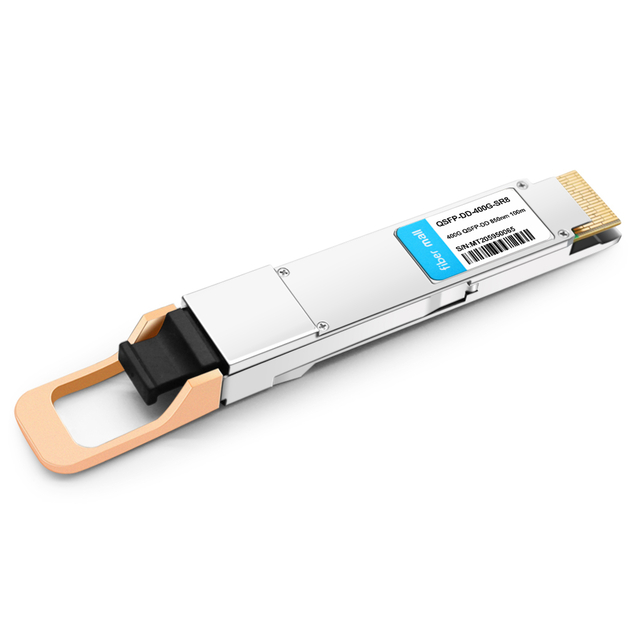

DELL Q56DD-400G-SR8 Compatible 400G QSFP56-DD Optics | FiberMall

Add to wish

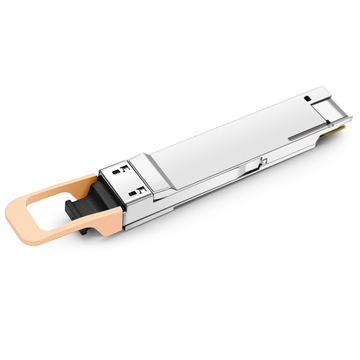

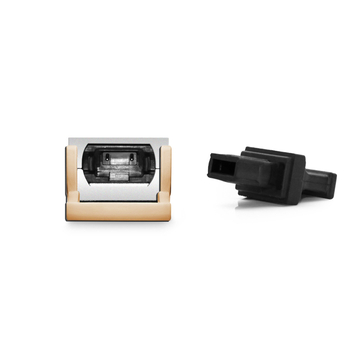

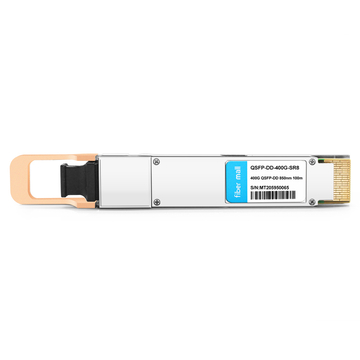

DELL Q56DD-400G-SR8 Compatible 400G QSFP-DD SR8 PAM4 850nm 100m MTP/MPO OM3 FEC Optical Transceiver Module

Name: DELL Q56DD-400G-SR8 Compatible 400G QSFP-DD SR8 PAM4 850nm 100m MTP/MPO OM3 FEC Optical Transceiver Module
Brand: fibermall
SKU: 18398
Price: 180.00 USD
Availability: OutOfStock
Rating: 5 (4 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:18398

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Arista Networks; DELL; EdgeCore; H3C; Huawei; Juniper

Transceiver Type: Q56DD-400G-EDR4; Q56DD-400G-FR4; Q56DD-400G-LDR4; Q56DD-400G-LR4; Q56DD-400G-SR4.2-ON; Q56DD-400G-SR8; 407-BCHW; 407-BCIB

FM PN:

QSFP-DD-400G-SR8

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to Canada Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

DELL Q56DD-400G-SR8 Compatible 400G QSFP-DD SR8 PAM4 Optical Transceiver Module (850nm MTP/MPO OM3/OM4 100m with FEC DDM)

DELL Q56DD-400G-SR8 Compatible 400GBASE SR8 Fiber Transceiver using QSFP-DD footprint features PAM4 modulation for up to 100m optical transmission over MMF. The Transceiver supports eight electrical interface channels that operate in 50G PAM4 coding mode to produce 400G (8x50G) data rates. It is compliant with the IEEE 802.3bs protocol and the 400GAUI-8/CEI-56G-VSR-PAM4 standard. The multiplexing and demultiplexing of eight wavelengths are managed within the device and connect 400G signals from the server side (NIC) to the data center aggregation switch.

Product Details

DELL Compatible	Q56DD-400G-SR8	Vendor Name	FiberMall
Form Factor	QSFP-DD	Max Data Rate	425Gbps
Wavelength	850nm	Max Distance	70m on OM3/100m on OM4
Modulation Format	PAM4	Host Required	FEC
Connector	MTP/MPO-16	Voltage Supply	3.3V
Cable Type	MMF	DDM Support	Yes
Receiver Type	PIN	TX Power	-6.5~+4.0dBm
Receiver Sensitivity	< -7.9dBm	Operation Temperature	0 to 70°C (32 to 158°F)
Maximum Power	< 12W	Protocols	QSFP-DD MSA, IEEE 802.3bs
Application	400G Ethernet, Data Center Interconnect, Infiniband Interconnects

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

Product Features

v QSFP-DD MSA compliant

v 8 parallel lanes on 850nm center wavelength

v Compliant to IEEE 802.3bs, RoHS

v 8x53.125Gb/s electrical interface (400GAUI-8)

v Data Rate 53.125Gbps (PAM4) per channel.

v Maximum power consumption 12W

v Supports Data Center Interconnect, 400G Ethernet, Infiniband interconnects, Enterprise networking

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Related Info

Questions & Answers
Ask a Question

No data

Customer Reviews
Write a Review

{{stardata.star}}

{{comment.count}} reviews
5 Stars

{{comment.star5}}%

4 Stars

{{comment.star4}}%

3 Stars

{{comment.star3}}%

2 Stars

{{comment.star2}}%

1 Star

{{comment.star1}}%

All Reviews ({{comment.star_num?comment.star_num:comment.count}})

All Reviews

5 stars only

4 stars only

3 stars only

2 stars only

1 star only
Reviews with Pictures ( {{comment.pic_comment}} )
See All Reviews

No data

G***e

United States

Verified Purchase

5.0

2023-10-26

We wanted a higher speed network system and were planning a 400G upgrade and needed a selection of transceivers, we don't need long transmission distances so this type was just right for us.

5 Helpful vote Comments

Skylar Foster

Verified Purchase

5.0

2023-10-16

The packaging of the module is excellent, and the delivery was very fast. My account manager is also very professional.

5 Helpful vote Comments

K***a

United States

Verified Purchase

5.0

2023-03-21

At first, I was skeptical about upgrading my network to 400GbE, but after using the QSFP-DD SR8 modules, I'm glad I made the switch. The high-speed, long-distance data transfer has improved my network's performance, and the seamless transition has made implementing the new technology much easier.

5 Helpful vote Comments

I***y

United States

Verified Purchase

5.0

2023-03-06

The 400G-SR8 modules will work great with the MTP cables purchased here. Basic performance is absolutely fine. We have been using them for almost a month now. They work well with our switches.
