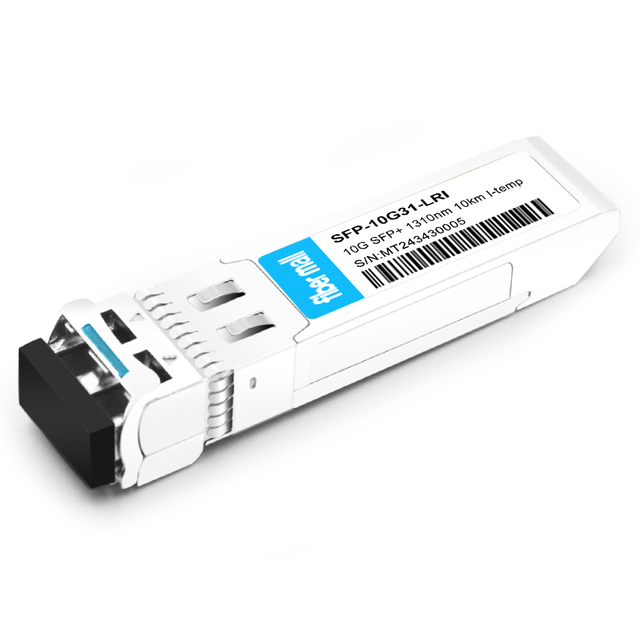

DELL 407-BBZV Compatible 10G SFP+ LR transceiver supports up to 10km link lengths over LC duplex SMF fiber. This transceiver is compliant with SFF-8431, SFF-8432, and IEEE 802.3ae standards. Digital diagnostics monitoring is available via a 2-wire serial interface specified in SFF-8472. The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA), and an MCU control unit. The transceivers are compatible with the SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.
| DELL Compatible | 407-BBZV | Vendor Name | FiberMall |
| Form Factor | SFP+ | Max Data Rate | 10.7Gbps |
| Wavelength | 1310nm | Max Distance | 10km |
| Connector | Duplex LC | Transmitter Type | 1310nm DFB |
| Cable Type | SMF | Receiver Type | PIN |
| TX Power | -6.5~-0.5dBm | Receiver Sensitivity | < -14.4dBm |
| Protocols | 10G Ethernet, MSA Compliant | Operation Temperature | -40 to 85°C (-40 to 185°F) |
Keep In Stock
Professional Service
Worry-Free Guarantee
Premium Quality
Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
Temperature Impact
Mechanical Impact
EMI Testing
MTBF Testing
FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
Product Features
v Supports up to 10.7Gbps bit rates
v Single +3.3V power supply
v 1310nm DFB laser and PIN photodiode, Up to 10km for SMF transmission
v Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle
v Compatible with RoHS
v Real-Time Digital Diagnostic Monitoring
v Hot-pluggable SFP+ footprint
v Applications for 10Gbps Optical systems, 10GBASE-LR at 10.3125Gbps, 10GBASE-LW at 9.953Gbps
