EPON ONU SFP PX20+ TX-1310nm Transceiver | FiberMall

$EPON-ONU-CLPX20+ EPON ONU SFP TX-1.25G/RX-1.25G TX-1310nm/RX-1490nm PX20+ 20km SC\UPC SMF DDM Transceiver Modules (Not EPON ONU STICK,NO MAC function)$
$EPON-ONU-CLPX20+ EPON ONU SFP TX-1.25G/RX-1.25G TX-1310nm/RX-1490nm PX20+ 20km SC\UPC SMF DDM Transceiver Modules (Not EPON ONU STICK,NO MAC function)$
$EPON-ONU-CLPX20+ EPON ONU SFP TX-1.25G/RX-1.25G TX-1310nm/RX-1490nm PX20+ 20km SC\UPC SMF DDM Transceiver Modules (Not EPON ONU STICK,NO MAC function)$
$EPON-ONU-CLPX20+ EPON ONU SFP TX-1.25G/RX-1.25G TX-1310nm/RX-1490nm PX20+ 20km SC\UPC SMF DDM Transceiver Modules (Not EPON ONU STICK,NO MAC function)$
$EPON-ONU-CLPX20+ EPON ONU SFP TX-1.25G/RX-1.25G TX-1310nm/RX-1490nm PX20+ 20km SC\UPC SMF DDM Transceiver Modules (Not EPON ONU STICK,NO MAC function)$
$EPON-ONU-CLPX20+ EPON ONU SFP TX-1.25G/RX-1.25G TX-1310nm/RX-1490nm PX20+ 20km SC\UPC SMF DDM Transceiver Modules (Not EPON ONU STICK,NO MAC function)$
$EPON-ONU-CLPX20+ EPON ONU SFP TX-1.25G/RX-1.25G TX-1310nm/RX-1490nm PX20+ 20km SC\UPC SMF DDM Transceiver Modules (Not EPON ONU STICK,NO MAC function)$

$EPON-ONU-CLPX20+ EPON ONU SFP TX-1.25G/RX-1.25G TX-1310nm/RX-1490nm PX20+ 20km SC\UPC SMF DDM Transceiver Modules (Not EPON ONU STICK,NO MAC function)$

Add to wish

EPON-ONU-CLPX20+ EPON ONU SFP TX-1.25G/RX-1.25G TX-1310nm/RX-1490nm PX20+ 20km SC\UPC SMF DDM Transceiver Modules (Not EPON ONU STICK,NO MAC function)

Name: EPON-ONU-CLPX20+ EPON ONU SFP TX-1.25G/RX-1.25G TX-1310nm/RX-1490nm PX20+ 20km SC\UPC SMF DDM Transceiver Modules (Not EPON ONU STICK,NO MAC function)
Brand: fibermall
SKU: 17789
Price: 12.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:17789

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: FiberMall

Transceiver Type: EPON-ONU-CLPX20+; EPON-OLT-PX20; EPON-OLT-PX20+; EPON-OLT-PX20++

FM PN:

EPON-ONU-CLPX20+

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

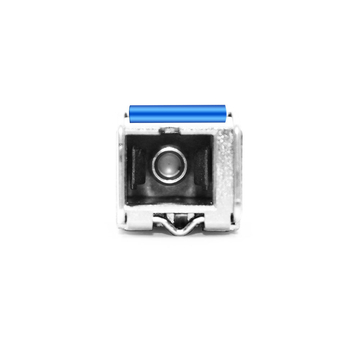

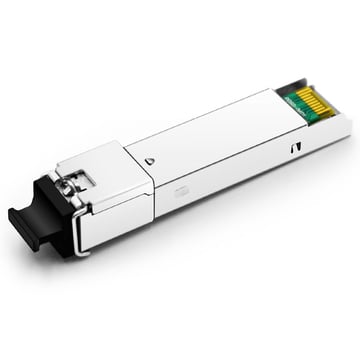

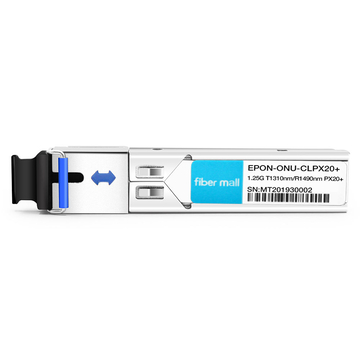

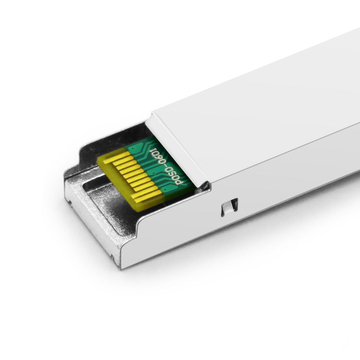

EPON ONU SFP TX-1.25G/RX-1.25G Transceiver Modules (TX-1310nm/RX-1490nm SMF PX20+ 20km SC\UPC DDM)

Product Details

FiberMall P/N	EPON-ONU-CLPX20+	Vendor Name	FiberMall
Form Factor	SFP	Max Data Rate	TX-1.25G/RX-1.25G
Wavelength	TX-1310nm/RX-1490nm	Max Distance	20km
Connector	Simplex SC	Transmitter Type	1310nm DFB
Cable Type	SMF	Receiver Type	PIN
TX Power	0~+4.0dBm	Receiver Sensitivity	< -27.0dBm
Protocols	MSA Compliant	Operation Temperature	0 to 70°C (32 to 158°F)

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

Our Advantages

Keep In Stock
Fast Delivery
Professional Service
Technical Support
Worry-Free Guarantee
Shopping Satisfactorily
Premium Quality
High stability

Rigorous Industrial Product Testing

Optical communication products belong to industrial products, which require high stability and reliability. FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle, aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanical vibration testing to ensure the stability of products

EMI Testing

Excellent design and rigorous testing ensure good EMI performance

: MTBF Testing; MTBF (Mean Time between Failures) testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices. Before shipment, We will code the optical modules or DAC/AOC cables, then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding (EEPROM Programming)

: Testing in system

PON Network Topology

Application Diagram of PON Network

EPON ONU SFP

Product Features

v Single fiber bi-directional data links

v 1310nm DFB laser transmitter and 1490nm PIN receiver

v 1.25Gbps burst mode transmission

v 1.25Gbps continuous mode receiver data rate

v SFP 2x10 package with SC/UPC Receptacle Connector

v Single 3.3V power supply

v Digital diagnostic monitoring interface

v LVPECL-compatible data input/output interface

v Provide TX burst mode signal detect function

v LVTTL transmitter laser fault alarm

v Low EMI and excellent ESD protection

v Class I laser safety standard IEC-60825 compliant

v RoHS-6 compliance

Applications

v Gigabit Ethernet Passive Optical Networks (GEPON)

v Access Networks

v FTTX

Standards

v Complies with SFP Multi-Source Agreement (MSA) SFF-8074i

v Complies with IEEE 802.3ah-2004

v Complies with FCC 47 CFR Part 15, Class B

v Complies with FDA 21 CFR 1040.10 and 1040.11 except for deviations pursuant to laser Notice No. 50, dated June 24, 2007

v Complies with SFF-8472

v Compatible with TR-NWT-000870 4.1 ESD sensitivity classification Class2.

v Compatible with Telcordia GR-468-CORE

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Datasheet


EPON-ONU-xxPX20+.pdf
