1x2 FBT Couplers Fiber Splitter Standard ABS Cassette | FiberMall

Add to wish

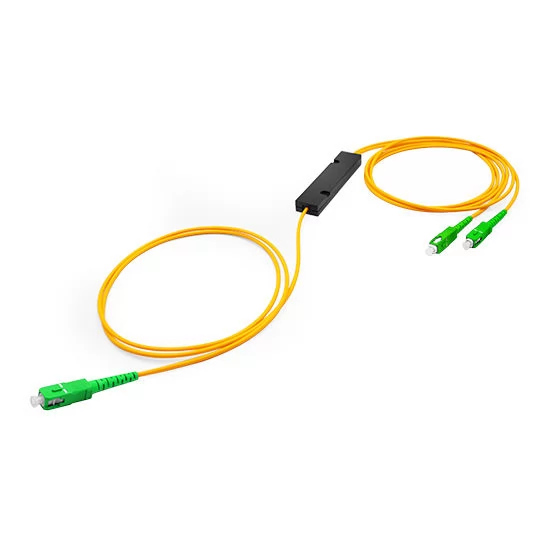

1x2 FBT Couplers Fiber Splitter, Standard ABS Cassette, SC/APC SM

Name: 1x2 FBT Couplers Fiber Splitter, Standard ABS Cassette, SC/APC SM
Brand: fibermall
SKU: 40073
Price: 5.00 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:40073

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Port Configuration: 1X2

FM PN:

FBT-1X2ABSSCAPC

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

1X2 FBT Splitter Dual Window Single Mode Coupler SC/APC
Product Details

Package Style ABS Module Por Configuration 1X2
Connector Type SC/APC Split Ratio 50/50
Insertion Loss ≤3.8dB Typical Excess Loss ≤0.10dB
Polarization Dependent Loss ≤0.2dB Return Loss ≥50dB
Maximum Power Handling 500mW Directivity ≥55dB
Operating Wavelength 1310±15nm or 1550±40nm Dimensions (HxWxD) 10x20x90mm
Operating Temperature -40°C～+85℃ Storage Temperature -40°C～+85°C

Quality Assurance
Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experience in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification
We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

FBT Couplers Fiber Splitter

Matching Products

Pictures

ID#

Description

Price

Stock

Add to Cart

Resources

Related Info

Questions & Answers
Ask a Question

No data

Q: I would like to find a devise that would allow me to hook up my sound bar as well as a blue tooth unit that would send the audio to my hearing aids that are blue tooth compatible. The out put on the TV is about two feet from the plug in on the sound bar, and the blue tooth the same. Will this work, is it long enough and it needs to bend over 90 degrees. By A***y on 2020-04-01

A: Our products are used in optical transmission.By HUIJING on 2020-04-06
