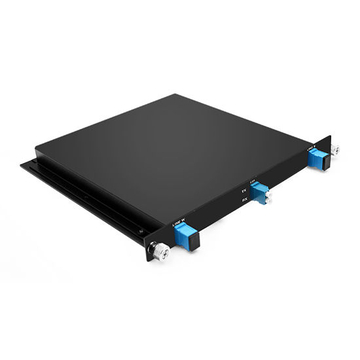

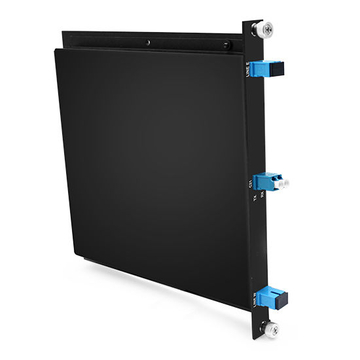

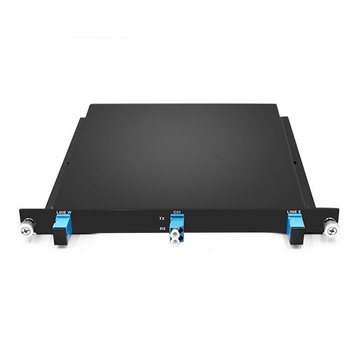

Passive DWDM Single Fiber OADM Module 1 DWDM Wavelengths (100GHz Spacing) LGX BOX

1 Channel DWDM OADM Dual Fiber East or West LGX BOX

Product Details

Operating Wavelength	1 Channels C21-C60	Channel Spacing	100GHz
Passband	ITU±0.11	Insertion Loss	≤1.0dB
Directivity	≥50dB	Return Loss	≥45dB
Transmission Direction	West or east	Line Type	Single Fiber
Adjacent Channel Isolation	≥30dB	Non-adjacent Channel Isolation	≥40dB
Polarization Dependent Loss	≤0.2dB	Polarization Mode Dispersion	≤0.2ps
Maximum Optical Power	500mW	Dimensions (HxWxD)	39x208x200mm
Operating Temperature	-5°C～+75°C	Storage Temperature	-40°C～+85°C

---

Quality Assurance

Excellent quality is the foundation of FiberMall s survival and development. Our operation team is experts with many years experience in the optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. Our products meet industry standards and mainstream quality certifications, such as ISO 9001, CE, RoHS, FCC, etc.

---

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

Short Lead time

Fast Delivery

Professional Service

Technical Support

Worry-Free Guarantee

Shopping Satisfactorily

Premium Quality

High stability

Product Specification

Number of channels	4	8	16
Wavelength range	CWDM:1270nm to 1610nm DWDM:C Band, 100 GHZ or 50 GHZ
Insertion loss	< 1.5dB	< 2.5dB	< 3.5dB
Isolation ratio of adjacent channels	>30dB	>30dB	>30dB
Isolation ratio of non-adjacent channels	>40dB	>40dB	>40dB
Return loss	>45dB	>45dB	>45dB
Direction	>50dB	>50dB	>50dB
Interface type	All interfaces are LC type
Work temperature	-40〜85℃
Storage temperature	-40〜85℃
