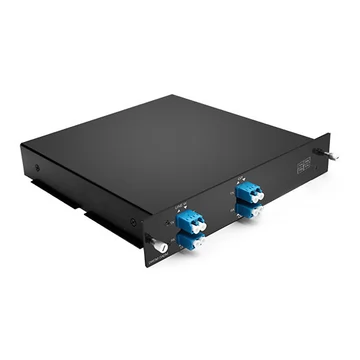

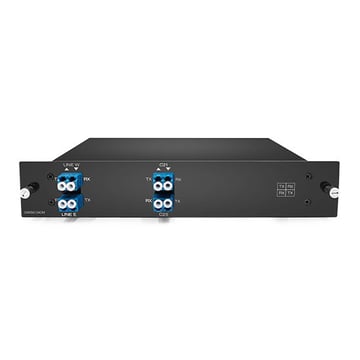

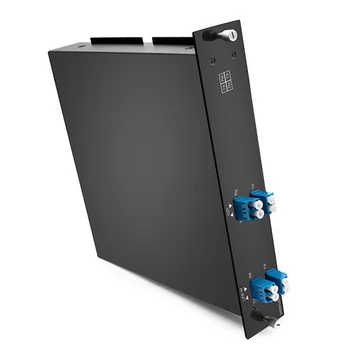

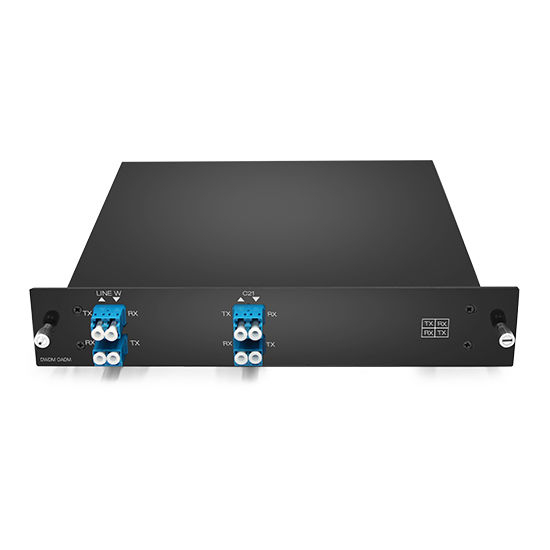

Passive DWDM Double Fiber OADM Module 2 DWDM Wavelengths (100GHz Spacing) LGX BOX

2 Channels DWDM OADM Dual Fiber East and/or West LGX BOX

Product Details

Operating Wavelength	2 Channels C21-C60	Channel Spacing	100GHz
Passband	ITU±0.11	Insertion Loss	≤1.3dB
Directivity	≥50dB	Return Loss	≥45dB
Transmission Direction	West and/or east	Line Type	Dual Fiber
Adjacent Channel Isolation	≥30dB	Non-adjacent Channel Isolation	≥40dB
Polarization Dependent Loss	≤0.2dB	Polarization Mode Dispersion	≤0.2ps
Maximum Optical Power	500mW	Dimensions (HxWxD)	39x208x200mm
Operating Temperature	-5°C～+75°C	Storage Temperature	-40°C～+85°C

---
