{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

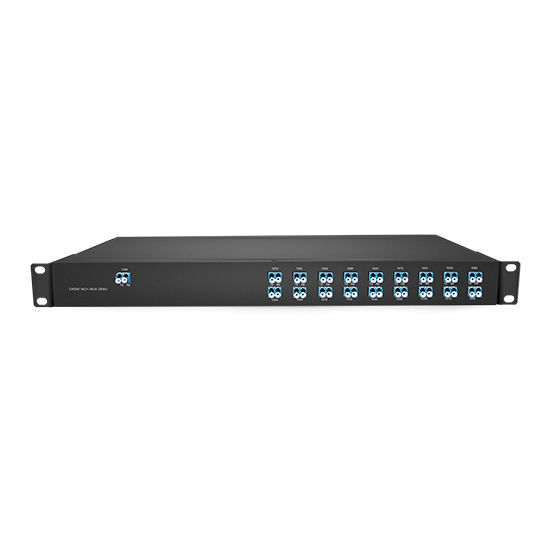

| Operating Wavelength | 18 Channels 1270-1610nm | Channel Space | 20nm |
| Passband | ITU±6.5nm | Insertion Loss | ≤5.4dB |
| Directivity | ≥ 50dB | Return Loss | ≥45dB |
| Pass Band Ripple | ≤ 0.5dB | Fiber Type | SMF-28e or Customer Specified |
| Adjacent Channel Isolation | ≥30dB | Non-adjacent Channel Isolation | ≥40dB |
| Polarization Dependent Loss | ≤0.2dB | Polarization Mode Dispersion | ≤0.1ps |
| Maximum Optical Power | 500mW | Dimensions (HxWxD) | 44x482x230mm |
| Operating Temperature | -20°C～+70°C | Storage Temperature | -40°C～+85°C |
Short Lead time
Professional Service
Worry-Free Guarantee
Premium Quality
| Number of channels | 4 | 8 | 16 |
|---|---|---|---|
| Wavelength range | CWDM:1270nm to 1610nm DWDM:C Band, 100 GHZ or 50 GHZ |
||
| Insertion loss | < 1.5dB | < 2.5dB | < 3.5dB |
| Isolation ratio of adjacent channels | >30dB | >30dB | >30dB |
| Isolation ratio of non-adjacent channels | >40dB | >40dB | >40dB |
| Return loss | >45dB | >45dB | >45dB |
| Direction | >50dB | >50dB | >50dB |
| Interface type | All interfaces are LC type | ||
| Work temperature | -40〜85℃ | ||
| Storage temperature | -40〜85℃ | ||
