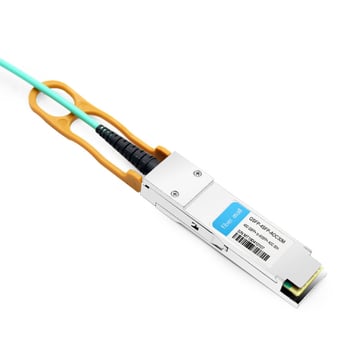

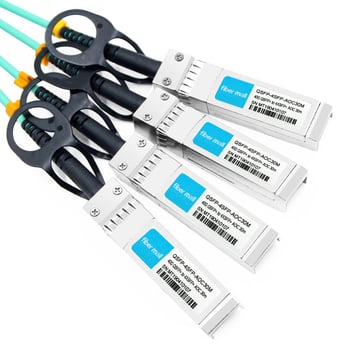

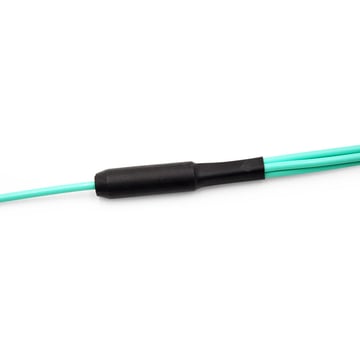

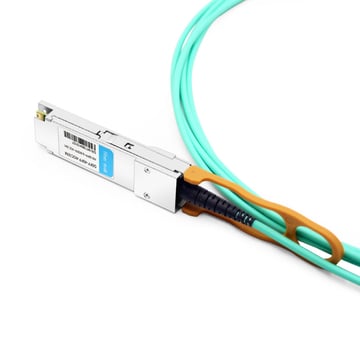

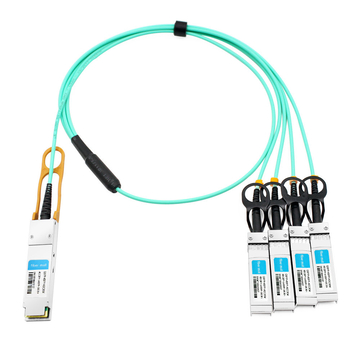

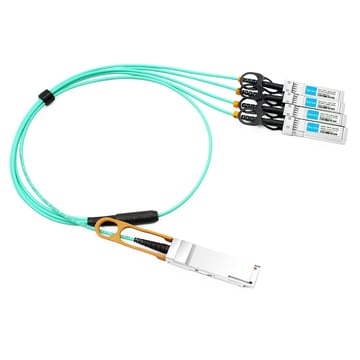

Extreme 10GB-4-F30-QSFP Compatible 30m 40G QSFP+ to 4x 10G SFP+ Active Optical Breakout Cable (QSFP+ to SFP+ AOC Breakout Cable, Active OM3 30m)
The 40G QSFP+ Breakout AOC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+Active Optical Cable to 4× SFP+ Active Optical Cable break-out solution. It is intended for 40G to 4× 10G applications. This AOC is a high-performance cable for short-range multi-lane data communication and interconnects applications. It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 4 x 10G InfiniBand QDR applications and are backward compatible with the 4 ×5GIBDDR and 4 × 2.5G IB single IB SDR applications.
Product Details
| Extreme Compatible |
10GB-4-F30-QSFP | Vendor Name |
FiberMall |
| Connector |
40G QSFP+ to 4xSFP+ | Max Data Rate |
40Gbps |
| Cable Length |
30m (98.4ft) | Fiber Cable |
OM3 MMF |
| Jacket Material |
OFNP | Minimum Bend Radius |
7.5mm |
| Operation Temperature |
0~ 70 °C (32 to 158°F) | Protocols |
40G InfiniBand 8x DDR, 4x QDR,
10/40 Gigabit Ethernet, Fibre Channel |
Product Features
v Compliant to the 40GBASE-SR4 and XLPPI
v Specification per IEEE 802.3ba-2010 and supporting
v 40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
v Compliant with the industry standard SFF-8436, SFF-8431, SFF-8432
v Power Level 1: Max Power < 1.5 W
v Supports all current 10-Gigabit Ethernet and 40-Gigabit Ethernet standard
v Operate at 10.3125 Gbps per channel with 64b/66b encoded data for 40GbEapplication and at 10 Gbps with 8b/10b compatible encoded data for 40G-IB-QDRapplication
v 40GbE and 10GbE break-out applications for Datacenter, Datacom switch and router connections and 40G to 4×10G density applications for Datacom and Proprietary protocol applications.
