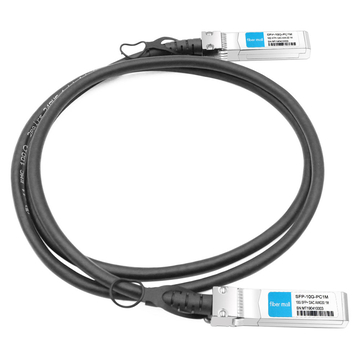

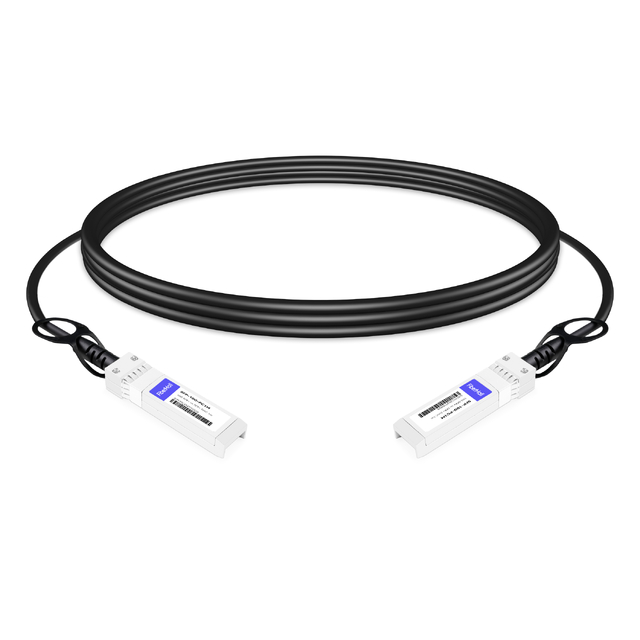

Mellanox MC3309130-001 Compatible 1m (3ft) 10G SFP+ to SFP+ Passive Direct Attach Copper Cable

Name: Mellanox MC3309130-001 Compatible 1m (3ft) 10G SFP+ to SFP+ Passive Direct Attach Copper Cable
Brand: fibermall
SKU: 15839
Price: 8.00 USD
Availability: OutOfStock
Rating: 5 (4 reviews)

: {{detail_data.prodInfo.name}}

{{comment.count}} Reviews

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }}
{{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

{{comment.count}} Reviews

SKU:15839

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Compatible: Cisco; FiberMall; Alcatel-Lucent; Arista Networks; Avaya/Nortel; Brocade; Dell/Force10; EdgeCore; Enterasys; Extreme; Gigamon; H3C; HPE (Aruba); HPE (BladeSystem); HPE (H3C); HPE (Procurve); IBM; Intel; Mellanox; MikroTik; Netgear; Palo Alto Networks; TP-link; Ubiquiti

Length: 0.5m (1.6ft); 1m(3ft); 1.5m(5ft); 2m(7ft); 2.5m(8ft); 3m (10ft); 5m (16ft); 6m (20ft); 7m (23ft)

FM PN:

SFP-10G-PC1M

Ship From:

Asia

Shipping:

Free Shipping

Can't deliver

to United States Via {{now_chooseship?now_chooseship.name:''}}

Estimated delivery time : 3-5 working days. See details

Quantity:

( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )

Total Price:

{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Bulk Quote
Shipping & Returns

Bulk Quote
Shipping & Returns

Add to wish ( {{detail_data.wish_value}} Adds)

Description
Specification
Matching Products
Resources
Q&A
Customer Reviews

Mellanox MC3309130-001 Compatible 1m 10G SFP+ Twinax Copper Cable (SFP+ to SFP+ DAC Cable, Passive AWG30 1m)

The DAC SFP+ cable assemblies are high-performance, cost-effective I/O solutions for 10Gb Ethernet and 10G Fibre Channel applications. SFP+ passive copper modules allow hardware manufacturers to achieve high port density, configurability, and utilization at a very low cost and to reduce power budget. The high-speed cable assemblies meet and exceed the performance and reliability requirements stipulated by Gigabit Ethernet and Fibre Channel industry standards.

Product Details

Mellanox Compatible	MC3309130-001	Vendor Name	FiberMall
Connector	SFP+ to SFP+	Max Data Rate	10Gbps
Cable Length	1m (3.3ft)	AWG	AWG 30
Jacket Material	PVC(OFNR)	Minimum Bend Radius	20mm
Operation Temperature	0~ 70 °C (32 to 158°F)	Protocols	1x InfiniBand QDR, DDR, SDR, 10G Ethernet, Fibre Channel

Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial ProductTesting

Optical communication products belong to industrial products,which require high stability and reliability.FIBERMALL adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle,aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanicalvibration testing to ensure the stability of products

: EMI Testing; Excellent designand rigorous testing ensuregood EMI performance

: MTBF Testing; MTBF(Mean Time between Failures)testing ensure high stablility

100% 3rd Party Compatible

FiberMall Compatibility Testing Center has most of the mainstream brand switches and devices.Before shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.

: Coding(EEPROM Programming)

: Testing system

Partial test demonstartion

: Cisco N9k-C92160YC-X-C

: HP ProCurve 5406zl J8697A

: ARISTA 7-50QX-32

: Juniper EX4300

: HW S5700-28X-L1-AC

: Brocade VDX 6720

: DELL S4048 ON

: DATACOM DM4100

: H3C LS-5500-28C-S

Product Features

v Support for multi-gigabit data rates up to 10.5Gbps

v Data rates backward compatible to 1Gbps

v Hot-pluggable SFP 20PIN footprint

v I/O Connector designed for high-speed differential signal applications

v Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance

v Compatible to SFP+ MSA

v Comply with RoHS 2.0

v Switches and routers, Data center cabling infrastructure, High-density connections between networking equipment
