- Casey
- October 3, 2023
- 3:28 am
Harper Ross
Answered on 3:28 am

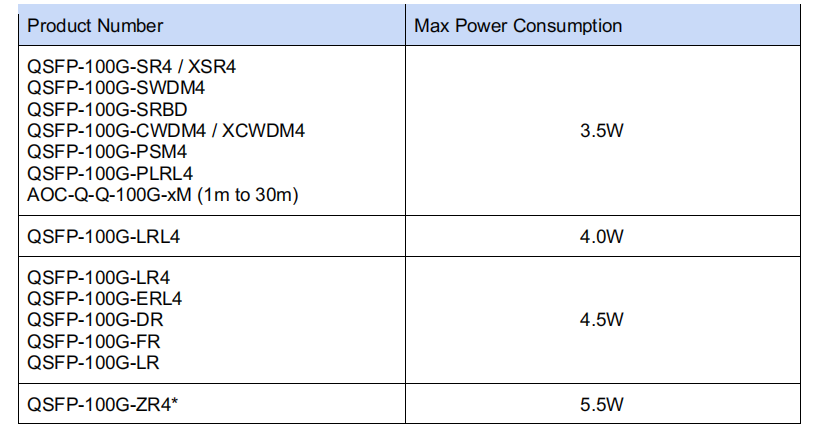

The maximum power consumption of 100G QSFP transceivers depends on the type and vendor of the transceiver. The table below summarizes the power consumption of Arista 100G QSFP transceivers.
* The QSFP-100G-ZR4 is supported on specific platforms because of the higher power draw.
