The Key Differences Between a Hub, Switch, and Router in Networking

For an individual seeking to improve their network or for a person in the networking technologies field, knowing the difference between a hub, switch and router is very important. All of these devices perform data transmission, intelligent network traffic management, and device interconnection within the network at differing levels of complexity. This essay explains their specific functions, shows how they differ from one another, and explains which device is appropriate for the desired level of automation and scalability. Professional network engineers or someone simply interested in the inner workings of data movement through a network will benefit from this guide about these fundamental technologies.

What is a Hub and How Does it Work in a Network?

A general definition of a Hub

A hub is that basic hardware which links a number of computers or devices together in a local area network (LAN). This device works on the physical layer of the OSI model. It receives data packets from one of the connected devices and sends them to all other connected devices regardless of whether the devices are the actual intended recipients or not. Since hubs do not filter or direct data, there is inefficient use of bandwidth because every device connected to the hub receives all of the data that is transmitted. This makes it less useful than a switch in most networks. The fact that they do not manage data makes them very ineffective, for instance in handling direct network traffic, therefore, they are often deemed inferior to switches in modern networks.

The Role of a Hub in a LAN

The role of a hub within the framework of a Local Area Network (LAN) is quite basic, and it is rather obsolete in today’s context. In essence, a hub is described as a hardware component of a star topology network, where ports of a ‘hub node’ connect to multiple devices. Hubs represent the lowest level of functionality because they lack any form of intelligence; working only at the data link layer of the OSI model, they fetch data packets and blast them to all nodes within the network. This method of transmitting data includes the possibility of collision domains, wherein network performance is degraded due to the collisions of data packets.

As a basis, older LAN configurations incorporated hubs because of their low cost and ease of use. With the increase in data requirements, however, most modern networks are doing away with using hubs due to their inability to process or route data in an intelligent manner. Research has shown that hubs have a maximum data transmission capability of approximately 10 Mbps (some more advanced models may reach up to 100 Mbps). This is in stark contrast to the current dial-up enabled switches and routers which are capable of surpassing the 1Gbps mark, VLAN support, traffic filtering, and many other functionalities.

While the use of these devices is becoming infrequent, they are still put to use in legacy systems, small control networks, or encounters with data and advanced systems management that don’t require extensive data manipulation. The use of switches has increased dramatically due to their advantages in reducing congesting traffic by MAC address learning (related to the advanced identification of network devices and computers) and intelligent packet switching which are essential for modern network demands.

Methods Of Hub Transmission in Network Traffic

A hub sends out information over a network by sending data to every device attached to the network. In the case where a device sends a data packet to the hub, the hub retransmits the packet to each port and every device, including those that are not the intended targets. This operation does not use any type of address recognition or filtering logic meaning that hubs are suited for smaller and less busy networks. The data is successfully sent to its required recipient who will accept and acknowledge the data while all other devices will discard it.

What is the meaning of a switch, and how is it different from a hub?

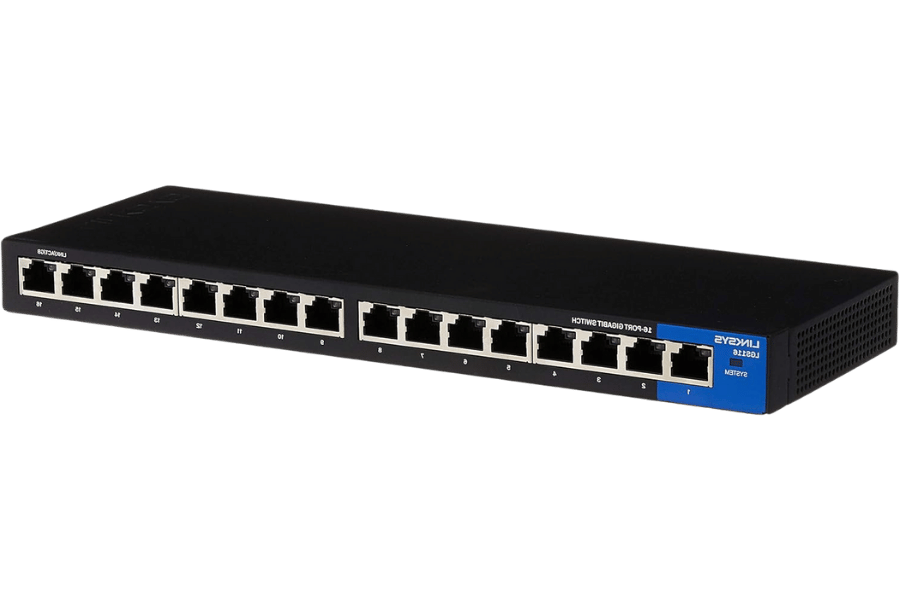

The Functionality of an Ethernet Switch

An ethernet switch makes a network more efficient by directing packets of data to the device they are intended for. Unlike a hub, a switch determines the destination address of each packet and based on that, forwards the data only to the correct port. This method significantly decreases network traffic and the chances of data collisions, which occurs when more than one data signals is sent between the same devices at the same time, and is more efficient for larger networks.

How a Switch Reads MAC Addresses

Each switch maintains a MAC database which contains source MAC, port numbers, and source IP addresses of devices on the network. When a switch gets a data packet it tries to find a corresponding value in its MAC tables. First it checks if the destination address is known. If yes, it gets the designated switch port from the MAC table. If no, it sends out a flood. In the case where the source address is already known, the source port corresponding to the source MAC will be used.

Switch and Hub: Understanding the Difference

Both switches and HUBs are basic networking devices, but there is a significant difference on the use case they are suited for.

A hub connects devices at the physical layer (Layer 1) of the OSI model. This device’s primary responsibility is to forward data packets to all devices regardless of the intended recipient. As a result, all devices in the network will have to spend time processing data packets, leading to inefficiency and traffic congestion.

On the other hand, switches operate at the data link layer (Layer 2) and are equipped with more sophisticated mechanisms. Each switch can control the flow of data based on the destination MAC address, maintaining a MAC address table. This enables the switch to reduce unwanted traffic sent to devices or ports that do not require it. In modern networks, an increased number of devices are being used, making the role of switches, including VLANs (Virtual Local Area Networks) and Layer 3 functionality, that much more important as they allow for intervention at the network layer.

The data emphasizes the performance gap pertaining to these devices. A hub provides bandwidth that is distributed among all ports; therefore, as more devices are added, the effective speed for each device succumbs. In contrast, switches provide dedicated bandwidth to each port, allowing multiple devices to connect at high speeds concurrently. For instance, a Gigabit Ethernet configuration allows a switch to maintain full 1 Gbps throughput per port, while a hub would have to share this bandwidth among several devices.

Moreover, switches incorporate more advanced security measures, including port security and MAC filtering, which are absent from hubs that lack sophisticated designs. This information highlights the security difference between a switch and hub. With the increasing complexity and demands of a network, switches have taken the role of hubs due to their superior scalability and more efficient integration into larger, more flexible systems.

Investigating the Functionality of a Router in Linking Networks

Key Features of a Router Compared to a Switch and a Hub

Routers, relative to switches and hubs, stand out due to their primary purpose as well as their intricate structure. As noted, switches only transfer data internally from one device to another within a network, while hubs only transmit data to all devices that are linked to them. Unlike them, routers interface several networks and facilitate data movement among them. Routers make use of the best way to send data, where data moves through diverse networks and long distances towards a certain endpoint that has been set as the destination. Furthermore, they also use sophisticated methods such as network addressing to determine locations, control network traffic and other vital operations that enterprise communication needs when local networks are connected to wide area networks like the internet.

Router’s Function in Network Configuration

In each of these parts and in every step of conveying information, routers have become a vital part, enabling effective network management, maintaining connections which may require manipulation, and constantly changing the point of data flow across networks. packet routing is one of the most advanced and crucial improvement fields in router technology. Subsequent to a device’s translation into a numerical code (IP address), the device is checked if the information has been split into smaller parts known as packets. New technologies have implemented adaptive systems that dynamically optimize selected routes to pathways with less traffic which helps minimize delays, making networks with a high volume of users much quicker.

In addition, routers now include sophisticated configurations for Quality of Service (QoS) that allow more critical activities, such as VoIP services and video conferencing to be performed without interruption. QoS-enabled routers, for instance, are reported to be able to enhance network throughput by as much as 40% during packet congested traffic periods. This is certainly beneficial to most professional networks.

Routers today oversee network security through integrated firewalls, Virtual Private Network (VPN) connections, and Intrusion Detection Systems (IDS). Enterprise quality routers are reported to have the capability of inspecting traffic for up to 100Gbps and will filter out threats rendering the system inoperable, thus, safeguarding highly sensitive information.

Furthermore, routers are designed to cater for incremental scalability. Multi-Protocol Label Switching (MPLS) enabled routers can optimize dataflow in entire corporate networks without restricting the rate of changes that may be needed later on. Also, the growth of IoT devices globally necessitates the need for routers controllable through IPv6 address allocation.

The sophistication of these devices identifies routers as fundamental tools for increasing network dependent services like accessibility, reliability, security, and scalability towards users worldwide.

Fitting a Router with Multiple Ethernet Ports

To configure multiple Ethernet ports with a router, use a network switch. First, plug an Ethernet cable into one of the LAN ports of the router and connect it to the switch. The switch will then increase the number of network ports available so that multiple devices may be connected to the network. Ensure all the devices are connected to the switch using Ethernet cables and that the router is setup to manage the precise number of connections requested. This configuration allows all devices to communicate without complication, since they are all on the same local network, and access the internet through the router.

How Do Switch and Router Work Together in a Network?

Setting Up a Local Network with Switch and Router

In order to set up a local area network, begin by getting hold of a switch and a router. The first step would be to locate the LAN ports on the router and the switch. Grab an ethernet cable, and connect it to one of the router’s LAN ports and the switch. This connection allows devices that are connected to the switch to have internet access via the router. In addition, connect other devices such as printers or computer terminals to the switch via ethernet cables. The router divides the available bandwidth among all of the connected devices, and in doing so, makes IPs available to each device to make sure there is no outage in connectivity among the devices in the network and the internet.

Managing Network Traffic with Switch and Router

Device utilization on a network is highly dependant on the efficiency of managed network traffic. Working at the data link level of the OSI model is the switch which operates on layer 2 while moving on the MAC address basis of the devices. The router on the other hand works on layer 3, that is why it operates on network level, and inter-network communications are possible through IP routing.

As with traditional routers, modern ones have QoS features that enable them to prioritize traffic as per application or device requirements. This is a huge improvement against old routers. For example, bandwidth can be reserved for high-priority activities like video conferencing or gaming during scheduled hours. This reduces latency and packet loss, further highlighting the advantages of switches in a common network environment. Unlike their managed counterparts, unmanaged switches do not have these features, but they still provide a high-speed connection for local devices through gigabit Ethernet ports.

The capabilities of a network can be increased by adding layer 3 switches to a business. These switches incorporate routing alongside high-speed switching. Also, they come with a higher number of ports for improved connectivity. Congestion at the same time is greatly rationed since these switches enhance control of traffic by using VLANs (virtual local area networks) to segment traffic. It has been documented that implementing VLAN segmentation in dense networks can increase data throughput by as much as 40%. This is an important factor while comparing switch vs hub performance.

Moreover, monitoring tools like SNMP (Simple Network Management Protocol), which is built into smart switches and routers, show how the two devices differ in direct network traffic management by monitoring bandwidth usage and identifying possible choke points. IT administrators are able to fix problems before they disrupt users and decrease productivity. Hence, these problems are solved in a proactive manner.

Smart and advanced IP routing on a router and packet forwarding on a switch provide both home and enterprise networks the ability to manage and maintain connectivity with optimized performance tailored to different types of traffic.

The Advantages of a PoE Switch in Enterprise Applications

The integration of data transfer and powering devices through an Ethernet switch (PoE switch) offers enterprises substantial benefits. These include simpler installation and maintenance due to the reduction of external power sources required. PoE switches are also advantageous in the network architecture since they allow for increased scalability and adaptability in the design of the network by powering IP cameras, VoIP phones, and wireless access points. Deployed devices are more reliable due to the centralized power management provided by PoE switches which means active devices will still receive power during local power outages. The operational and cost-saving advantages PoE switches provide to enterprises enhances the effectiveness and productivity of their networks.

Selecting The Correct Network Device: Router, Hub, and Switch

What to think about when choosing Switch over Hub

The factors of primary importance in deciding whether to select a hub or switch are network efficiency, how data is managed, and the ability to expand.

• Efficiency: Reception capacity increases reduces network congestion which allows to operate at high level. Switches are more efficient because they direct data only to the intended recipient device, thus reducing congestion. Unlike hubs which broadcast data to all devices leading to collisions and slowing performance.
• Use Case: Hubs are ideal for basic setups for small scale organizations where minimal traffic is expected. In contrast, enterprise networks that require higher speeds and reliability are better suited with switches.
• Scalability: Outdated in professional environments, hubs have limited scalability while switches have the ability to support larger, more complex networks with multiple devices and higher bandwidth demands.

As far as modern structures and system architectures are concerned, switches will always be preferred in most scenarios because of advanced technological efficiency.

When to use a Router for Wi-Fi and Wired Connections

The use of routers becomes essential when there is a need to connect multiple devices to the internet or set up a local network. It manages the data traffic between your devices and your ISP, allowing communication to take place. Use a router for mobile devices, laptops and smart home systems over Wi-Fi while keeping it for wired connections when higher stability or speed is required, like with gaming, video calls, or sharing files. Routers are essential for both home and office settings where there is need for dependable and safe network supervision.

Understanding Bandwidth and Routing Capabilities

Bandwidth refers to the upper limits of data transferred over a network connection within a set timeframe (like per second or minute), often shown in megabits (Mbps) or gigabits (Gbps). The use of multimedia or high data volume tasks such as streaming, file downloads and data sharing is facilitated by high bandwidth, which enables great amounts of data to be transferred.

The handling of data traffic by a router is dependent on its routing capabilities. High performing routers prioritize bandwidth-saturated activities, multitask seamlessly, and protect sensitive information through secure data channels. When evaluating a router, always take into account the total bandwidth of the router and the traffic demands to achieve optimal network performance.

Frequently Asked Questions (FAQ)

Q: What is a network hub and how does it function?

A: In ethernet technology, a network hub is the least sophisticated of the three devices. It acts as the focal point of multiple connections in a computer network. Hubs do not filter incoming data. Hubs simply broadcast any incoming data to all devices connected to it. For large networks however, this is inefficient and switches which can optimize direct network traffic are far superior.

Q: How does a network switch differ from a hub?

A: A network switch is comparatively more advanced than a hub. Hubs send data to all connected devices indiscriminately, but a switch reads data packets and keeps a record of the addresses that are connected to it. A switch is more efficient since it sends data only to its intended recipient which minimizes network traffic.

Q: What makes a router the most intelligent of the three devices?

A: Of the three devices, a router is the most intelligent one. It is capable of linking two or more networks and is responsible of directing traffic between them. For an efficient data transfer, routers need to know which data packets need to be sent to which portions of the network, this is where IP addresses come in handy. They help routers determine the best way of sending out data packets making them an essential device for internet connectivity and other complex networks.

Q: Could you clarify the distinctions between passive and active hubs?

A: Passive hubs do not amplify signals; they simply send electrical signals to every other port in the hub. In contrast, Active hubs receive the signal from the input port, regenerate it, and amplify it before sending it to other ports. Active hubs are capable of greater distances between cables and can greatly improve the quality of the signal.

Q: In what ways do managed switches differ from unmanaged ones?

A: Compared to unmanaged switches, managed switches give more control and features. They enable the network manager to specify and supervise via LAN monitoring of traffic flow. Unmanaged switches are simple plug-and-play items with no customization functionalities, ideal for small networks or home environments.

Q: What is the reason for the integration of routers and switches in the same network?

A: The combination of routers and switches is frequently applied due to their mutual benefit for primary functions. Switches are very good at establishing Local Area Networks (LAN) and performing internal network traffic management whereas routers are used to interconnect many networks, routing data traffic within and between networks, including Internet access.

Q: Are switches, routers, and hubs the same things?

A: Although synonymous with each other, they hubs, switches, and routers have individual functions. A hub is the least sophisticated, a switch is more advanced than a hub but less than a router, while a router is the most intelligent and versatile device amongst the three.

Q: What does a Gigabit Switch bring to a Company’s Computer Network?

A: Unlike the older switches limited to 10 or 100 Mbps, a gigabit switch offers up to 1000 Mbps. The higher bandwidth offered with gigabit switches is essential to networks with high data transfer requirements, such as large file transfers, video streaming, or supporting multiple users simultaneously.

Q: What does a 4-port Router offer that a regular Router doesn’t?

A: A 4-port router is often referred to as a router-swith combo because of its dual features. In addition to a router, it is equipped with four LAN ports, which function as a tiny built-in switch capable of connecting multiple devices directly to the router. This is perfect for small office networks or homes with a limited number of wired devices.

Reference Sources

1. Implementation of Hub, Switch and Load Balancer Scenarios in a Software-Defined Datacenter Network

• Authors: O. Abadi, Khaled Algzole, N. Osman
• Publication Date: January 5, 2023
• Journal: Academic Journal of Research and Scientific Publishing
• Summary: This research examines the Application of Software-Defined Networking (SDN) on a datacenter network with special emphasis on the datacenter’s role hubs, switches, and load balancers play. Using Mininet emulator, the study builds and tests several hypothetical networks, analyzing their performance with Wireshark.
• Key Findings: The study shows that SDN enhances traffic management and security for datacenter networks and reinforces the need for automation in networking. Moreover, the load balancing approaches eliminate congestion and improve traffic distribution which also increases the server’s utilization.(Abadi et al., 2023).

2. Comparative analysis of performance of hub with switch local area network (LAN) using riverbed in University of Technology (Utech), Jamaica

• Authors: Christopher Udeagha, R. Maye, D. Partrick, D. Humphery, D. Escoffery, E. Campbell
• Publication Date: March 1, 2016
• Journal: SoutheastCon
• Summary: This research assesses the effectiveness of hubs and switches in a local area network (LAN) utilizing Riverbed simulation software. Two models were developed, one containing a hub and the other with a switch, in order to compare their performance indicators.
• Key Findings: The data showed that the switch surpassed the hub in network functionality and data transfer rate, underlining the merits of utilizing switches within contemporary networking settings(Udeagha et al., 2016, pp. 1–5).

3. Accelerator-in-switch: A framework for tightly coupled switching hub and an accelerator with FPGA

• Authors: Chiharu Tsuruta, Takahiro Kaneda, Naoki Nishikawa, H. Amano
• Publication Date: October 2, 2017
• Journal: International Conference on Field-Programmable Logic and Applications
• Summary: The document describes the Accelerator-in-Switch (AiS) framework which combines the accelerator and switching hub in one FPGA. The work analyzes the efficiency of two sample accelerators in a PCIe direct interconnection network.
• Key Findings: The AiS framework enables high-performance computation through the close coupling of the accelerator with the switching hub, markedly shrinking the time needed for the place and route of the accelerator.(Tsuruta et al., 2017, pp. 1–4).

4. Performance Modeling in Client Server Network Comparison of Hub, Switch and Bluetooth Technology Using Markov Algorithm and Queuing Petri Nets with the Security Of Steganography

• Author: Sri Krishna
• Publication Date: 2010 (not within the last 5 years but relevant)
• Summary: This paper analyzes the operational effectiveness of hub, switch and Bluetooth technologies in client-server networks using Markov algorithms and Queuing Petri Nets. The investigation analyzes the service rate and arrival rate for these technologies.
• Key Findings:The study found that in contrast to services provided using hubs and switches, Bluetooth technology showed markedly better performance regarding service rate, indicating its possible use in certain network configurations(Krishna, 2010).
