The release of the 400G ZR coherent optical transceiver module marked an important milestone in networking technology. This module was created to service the growing need for data transfer to be done at greater distances. Telecommunication networks, cloud providers, and data centers can now enjoy hassle-free integration due to its Powerful Interface. With a 400 Gbps data transfer rate, the optical fiber 400G ZR module is both cost-effective and scalable. This article aims to discuss the revolutionary 400G ZR module in detail, outlining key features, important benefits, and additional innovative aspects that enhance modern optical communication. No matter your profession— network administrator, systems technician, technology fan, this guide will help you understand how the ZR 400 is revolutionizing the industry.
What is the Coherent 400G ZR Technology?
How does the 400G ZR Optical Transceiver Function?
The 400G ZR optical transceiver utilizes coherent optical technology to transmit data at a staggering 400 Gbps over distances up to 120 kilometers. It uses digital signal processing (DSP) to ensure reliable performance by encoding and decoding the optical signals. The 400G ZR also makes use of dense wavelength division multiplexing (DWDM) which ensures maximum utilization of the existing optical fiber infrastructure. The module is compliant with open standards like those from the OIF (Optical Internetworking Forum) which guarantees interoperability of different network equipment. Its small size in the QSFP-DD format enables easy incorporation into high capacity data center and metro networks.
What Makes 400G ZR Coherent Optics Stand Out?
The rest of the industry doesn’t match up to the 400G ZR coherent optics in terms of long range, high speed data transport, and power efficiency. This technology was developed for point-to-point, high-capacity links that are 120 kilometers apart to meet the demands of cloud and data center interconnections.
The most important detail concerning 400G ZR is that it follows the OIF ZR interoperability standard. This ZR interoperability standard allows for multiple vendor compatibility ZR enables compatibility between multiple vendors helping open up and diversify the optical ecosystem. It also supports data rates of 400 Gbps, so this solution can handle immense amounts of data traffic that can be used toward quicker service deployment for bandwidth demanding applications like AI/ML, video streaming, and large-scale storage replication.
One other important aspect the 400G ZR coherent optics takes into account is energy consumption. The Quad Small Form Factor Pluggable Double Density or QSFP-DD has the lowest power usage of about 10 to 15 watts which makes it more efficient than traditional line cards in legacy equipment. This passive demand helps data centers minimize operational expenses, lower carbon emissions, and give them more control over the data.
In terms of cost efficiency, 400G ZR replaces complicated, proprietary DWDM systems with simpler pluggable ones that can be used on switches and routers. It eliminates the use for standalone optical transport equipment, helping reduce capital expenditures. Moreover, by sending multiple wavelengths through the same fiber pair, it enhances infrastructure use by a lot. It also provides the needed scale to meet future requirements with no extensive upgrades.
The swift increase in global data traffic is a concern for telecom operators, cloud service providers, and enterprises. 400 G ZR coherent optics meet this concern owing to their performance, cost effectiveness, and efficiency. Adoption of these optics ensures progress towards automation and optoelectronics defined interfaces.
Why is 400 G ZR Important for Optical Networks?
400 G ZR is considered to be of great importance to optical networks since they allow for reduction in latency and enhancement of bandwidths for long range links. Its cavity assisted devices integrated with telecommunication grade lasers provide precision and simplification of data transfer over long distance. By using standard modules, the coherence optical technology is integrated. also, proprietary systems along with complexity are done away with. Among cloud service providers, telecom providers and other vendors there is seamless scaling capability due to standardization. Moreover, the compliant 400 G ZR enhances the bandwidth offering within data centers and backbone networks. Most importantly, the ZR maintains reliability during traffic increases and enhances performance.
How Does 400G ZR Compare with Other Optical Technologies?
400G ZR & Older Modules
As is the case with other interfaces, 400G ZR differs from traditional modules implanted into telecommunication networks as it focuses on fiber focus longitudinal and bandwidth data streams. Proprietary solutions tend eschewed with traditional modules; however, 400G ZR uses an open-standard specification set by OIF (The Optical Internetworking Forum). This guarantees cross-vendor interoperability. Moreover, 400G ZR combines digital coherent optics which enable it to manage distances up to 120km with high-bandwidth, unlike adapters meant for shorter less demanding uses, DCs, or backbone network upgrades.
Concrete Advantages of 400G ZR Features for Data Center Usage
- Optimized Connectivity. The 400G ZR standard simplifies data center interconnects by integrating high-bandwidth, long-distance transmission into a cost-effective solution, which relieves network infrastructure in terms of overall complexity.
- Reliable Data Transmission. With 120KM reach support, coherent zoom 400G ZR data, and proprietary structures guarantee fast, enduring performance for current data-observing frameworks.
- Reduced Expenses. This technology lowers the amount of extra equipment like amplifiers or multiplexers needed, which decreases capital and operational expenditures.Interoperability With Other Vendors. Following OIF requirements helps to make different hardware vendors work and be integrated in multi vendor setups easily.
- Support for Future Opportunities. Additional data center traffic can be handled with considerable ease and efficiency using 400G ZR making it a preferred choice for network expansion.
What Are the Main Features of The 400G ZR Transceiver Module?

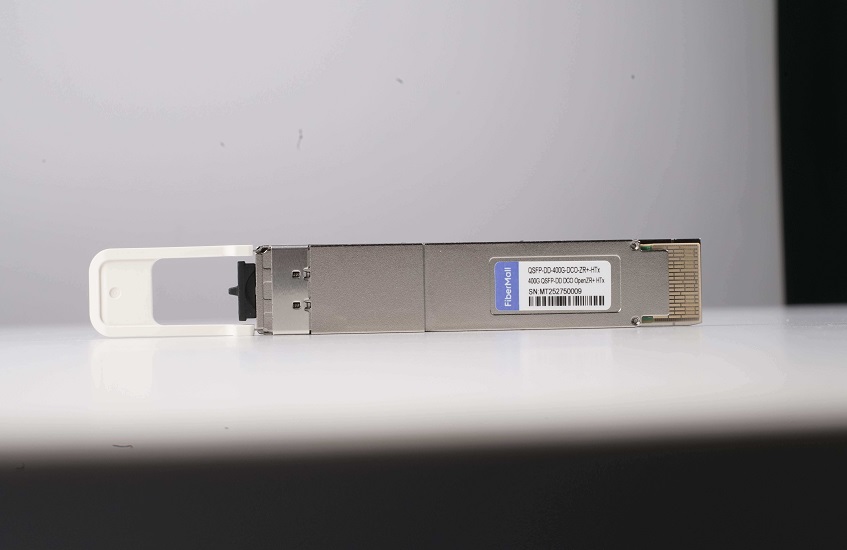

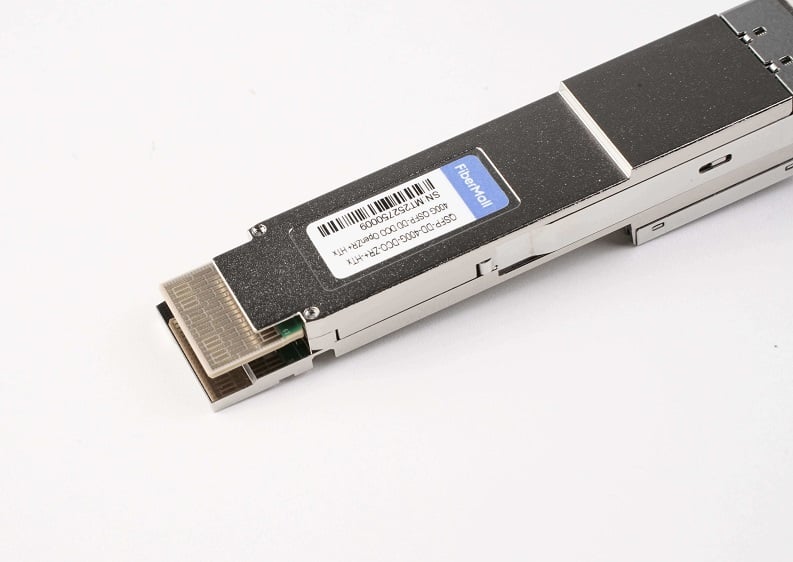

Delving Within The QSFP-DD Form Factor
The Quad Small Form Factor Pluggable DD (QSFP-DD) is a type of connector that supports serial data rates up to 400Gbps. It accomplishes this feat with the aid of 8 parallel high speed electrical lanes, each capable of 50Gbps. As with all other kinds of transceivers, the QSFP-DD modules are backward compatible with older versions which makes them easy to incorporate into any system that uses older equipment. Furthermore, the compact dimensions of the form factor also increase port density in network equipment, optimizing data centers and meeting the growing demand for bandwidth.
The Benefit of Tunable Wavelengths
Tunable wavelengths have extreme importance value in the flexibility and efficiency they provide in data transmission in optical networking. Due to the ability of changing the wavelengths in real time, tunable transceivers lessen the inventory and operational costs by eliminating the requirement of so many fixed modules with different wavelengths. Fixed modems make a network hard to scale and deploy while adaptable modems enhance the ability of a network to expand, especially in conditions with rapid changes in resource accessibility. Furthermore, tunable technology enables repeated use of a wavelength along with certain dedicated ports ensuring optimized use of the resources in high capacity networks.
Power Optimization and Flexible Solutions using 400G ZR
With 400G ZR, the standard lowers energy requirements for transmitting large amounts of data, thereby improving power efficiency. It has greater range and lower delay as well as consistent data processing reliability, making it perfect for linking different units of the data centers as well as for metropolitan area networks. Moreover, 400G ZR allows operators to satisfy additional requirements for bandwidth with little additional network infrastructure expenditure, lower optical network operational costs, and much greater network resilience. It also allows effortless interconnection of devices from different suppliers and simplifies deployment planning.
How is 400G ZR Implemented into the Optical Networks?
400G ZR Implementation in Fiber Optic Systems
The integration of 400G ZR in fiber optic systems is done using pluggable transceiver modules that are compliant with the 400G ZR specification. These modules are placed into corresponding slots of routers or switches within a network and communicate with the adjacent optical systems. With the application of coherent DWDM (Dense Wavelength Division Multiplexing), 400G ZR allows for data transmission over distances of several hundred kilometers. Its modular structure guarantees interoperability between various vendors, thus, facilitating easier adoption and lowering expenses. Network operatives can efficiently increase bandwidth while sustaining dependable performance and reliability throughout the network.
Integrating 400G ZR and Maintaining Seamless Interconnect
To effectively integrate the 400G ZR, it is vital that the relevant hardware, software, and networks configurations and installations setup correct interfaces. Additional steps such as testing compatibility with other vendor equipment and confirming that the transceivers are compliant with the 400G ZR standard are crucial. Adequate optical signal quality within the DWDM, appropriate power levels, and adequate dispersion management has to be maintained. Adjustments to configuration and powerful monitoring tools further mitigate potential problems such as signal degradation. This approach guarantees dependable direct current while taking full advantage of the 400G ZR.
What are the problems and opportunities of 400G ZR?
Resolving Restrictions on Data Rate and Distance
“Striking the ideal equilibrium between data rate and distance with 400G ZR technology is a physically and operationally demanding endeavor.” Althoring to a harshly defined set of parameters like signal attenuation and dispersion, disconnects with innate high data rates come with a list of accuracy challenges. To retain signal integrity, advanced error correction methodologies, also known as FEC, are used extensively. Furthermore, practical limits on the distance data can be transmitted without degrading quality can be enhanced through the use of amplification and wavelength management solutions, which do not interfere with performance. Changing optical technologies creates windows for innovations with modulation formats and even signal processing, which could even help mitigate such limitations.
The Contribution of 400G ZR Technology to DCI Strategies of the Future
As a flagship strategy of ZR technology, the implementation of 400G ZR simplifies the scaling of Data Center Interconnect (DCI) strategies by integrating high-capacity transporting optical interfaces into the routers and switches. There is no longer a need for separate transponder equipment as it is now an integral part of the routers and switches due to its cost effectiveness and complexity. This enhancement augments lower operational costs while providing elimination to redundancy, increases streamlining and vertical integration to the networks in parallel to a decrease in network architecture complexity. Moreover, the integrated Ethernet format allows simple cross- vendor environments. All of these features make 400G ZR a pivotal element in the ongoing improvement of cloud-based services j as they enhance the efficiency and performance demand in modern cloud and data center ecosystems infrastructures.
Frequently Asked Questions (FAQ)
Q: What is the 400G ZR optical transceiver module?
A: The 400G ZR is a module of coherent optical transceivers for dense wavelength division multiplexing (DWDM) optical networks). It enables high-density data transmission over long distances and uses pluggable coherent optics technology, supporting up to 400 gigabits per second (Gbps) transmission, while adhering to the OIF 400ZR implementation agreement (OIF 400ZR).
Q: What is the role of the 400G ZR module with respect to the enhancement of DWDM systems?
A: The main enhancement of the 400G ZR module to DWDM systems is high-density long-distance optical transmission with minimal power consumption. In addition, the modules support C band and DWDM tunable wavelengths, optimizing the usage of the fiber optic network.
Q: Which benefits are supported with the installation of pluggable coherent optics?
A: With the 400G ZR modules, with the coherent PCO designs comes a range of benefits like lowering operational costs through reduced power consumption, enabling far simpler upgrades to the network, and ease of deployment in existing networks without having to make drastic changes. Moreover, they allow for easier integration with coherent QSFP-DD/OSFP form factors for routing and line systems.
Q: Why does the OIF 400ZR implementation agreement matter?
A: The OIF 400ZR Implementation Agreement details the modules 400ZR—ensuring compatibility between a system’s multiple pieces of equipment—has coherent QSFP-DD, OSFP among others optical modules. The OIF 400ZR agreement, thus allows different vendors’ devices to freely interface with each other, ensuring their widespread usability ad compatibility.
Q: In what ways does the 400G ZR control power usage?
A: The 400G ZR makes use of efficient design and advanced photonic technologies. This greatly minimizes power requirements, making controls supportive of the required relay of high-speed data communication. This controlling of power usage helps in high-density deployments where efficient operational sustainability is needed.
Q: What is the range of distances the 400G ZR can reliably transmit data?
A: The 400G ZR is designed in a manner such that it can reliably transmit data over the distance of 120 kilometers. Alongside the reliability offered, it’s also suited for long-haul and metro networks, providing broader regional coverage of fiber optic networks.
Q: Is it possible to integrate the existing 400G Network ZR Module into a network infrastructure that was not specifically designed for it?
A: It is possible as with its pluggable form factor and adherence to industry standards, it can be integrated into existing network infrastructures. The module is compatible with multiple line systems and is widely supported by several Network Equipment providers such as Juniper Networks and fs.com of Europe.
Q: In what aspects does the 400G ZR differ from traditional optical modules?
A: In regard to integrated conventional modules, 400G ZR has a greater data rating (it can go up to 400Gb) alongside far more effective optical transmission over longer ranges with better OSNR, and output power levels of 0dBm. Because of its qualification to implementation agreements, interfoperability is possible with coherent transceiver technologies like QSFP-DD ZR which means the module can meet the demands of current networks.
Q: What exactly does Juniper Networks do to assist the 400G ZR?
A: The 400G ZR compatible Network Equipment is offered by Juniper Networks which increases support for the ZR modules. Their products integrate seamlessly with these modules which enhances the deployment and management of coherent technologies to improve dense and efficient optical interconnect solutions in different network environments.
Reference Sources
- Title:Demonstration of 400G High Power ZR+ IP over WDM in Key Network Scenarios with End-to-End 400GE Traffic
- Authors: Yu Rong Zhou et al.
- Publication Date: 2024-03-24
- Citation Token: (Zhou et al., 2024, pp. 1–3)
- Summary: This paper demonstrates successful use of 400G high power ZR+ optics in IP over Wave Division Multiplexing WDM applications. The research examines the behavior of these optics in fundamental network situations, particularly targeting end-to-end 400GE telemetry and streaming telemetry for performance monitoring and evaluation. The approach consists of having the experiment conduct steps to measure the defined parameters of the 400G ZR+ optics in a practical network environment.
- Title:Field Demonstration of Disaggregated Optical Network Consisting of ZR+ and Coherent Channels using Power Equalization by Switched Gain Equalization Controlled Amplifiers
- Authors: Sumit Chatterjee et al.
- Publication Date: 2023-03-01
- Citation Token: (Chatterjee et al., 2023, pp. 1–3)
- Summary: This paper presents a practical evaluation of a 400G-ZR+ QSFP-DD-DCO interfaced with ten coherent channels, emphasizing interoperability across multiple vendors. The approach is based on SimAlign simulation verification using switched gain equalization controlled amplifiers. The findings confirm the merit of disaggregation in optical networks with regard to operational performance and flexibility.
- Title:Cost Model Comparison of ZR/ZR+ Modules Against Traditional WDM Transponders for 400G IP/WDM Core Networks
- Authors: P. Wright et al.
- Publication Date: 2020-12-01
- Citation Token: (Wright et al., 2020, pp. 1–4)
- Summary: The document provides a cost model for ZR/ZR+ module integration, alongside comparison to traditional Wavelength Division Multiplexing (WDM) transponders, within the context of 400G IP/WDM core networks. It offers an exhaustive consideration including details of cost implications of various network architecture configurations while demonstrating the feasibility of integrating WDM optics into IP routers at low cost and without loss of port density.
- Title:927-km End-to-End Interoperable 400-GbEthernet Optical Communications through 2-km 400GBASE-FR4, 8×100-km 400G-OpenROADM and 125-km 400-ZR Fiber Lines
- Authors: E. Pincemin et al.
- Publication Date: 2022-03-01
- Citation Token: (Pincemin et al., 2022, pp. 1–3)
- Summary: This paper details the first instance of the optical transmission of 400-GbE data flows of 927 km using various fiber line sections in an end-to-end interoperable manner. It involves developing experimental arrangements to verify the performance and interoperability of various optical parts, proving the 400G performance claim of the developed 400G optics.
- Title:Silicon Photonic ZR/ZR+ DCO-CFP2 Interface for DCI and Metro-Regional 400G Optical Communications
- Authors: E. Pincemin, Y. Loussouarn
- Publication Date: 2021-06-01
- Citation Token: (Pincemin & Loussouarn, 2021, pp. 1–3)
- Summary: This research develops a 400-Gbps DP-16QAM silicon photonic DCO-CFP2 interface employing standard Forward Error Correction (FEC) techniques. The approach includes relating experimental measurements of the interface’s performance with its applicability to Data Center Interconnect (DCI) as well as metro and regional optical networks.
