Never has the need been greater for network performance to be faster and more reliable. For anyone supporting a thriving enterprise, managing resource-heavy applications, or simply looking to scale up their infrastructure, a 10 Gigabit Ethernet (10GbE) switch is the first step towards unrivaled speed and efficiency. This blog takes 10GbE’s transformative capabilities in data transmission, scalability, and modern network demands to detail. By the end of this article, you will appreciate why 10GbE is regarded as the benchmark for high-performance networking and how a 10 Gigabit Ethernet switch can transform network operations.

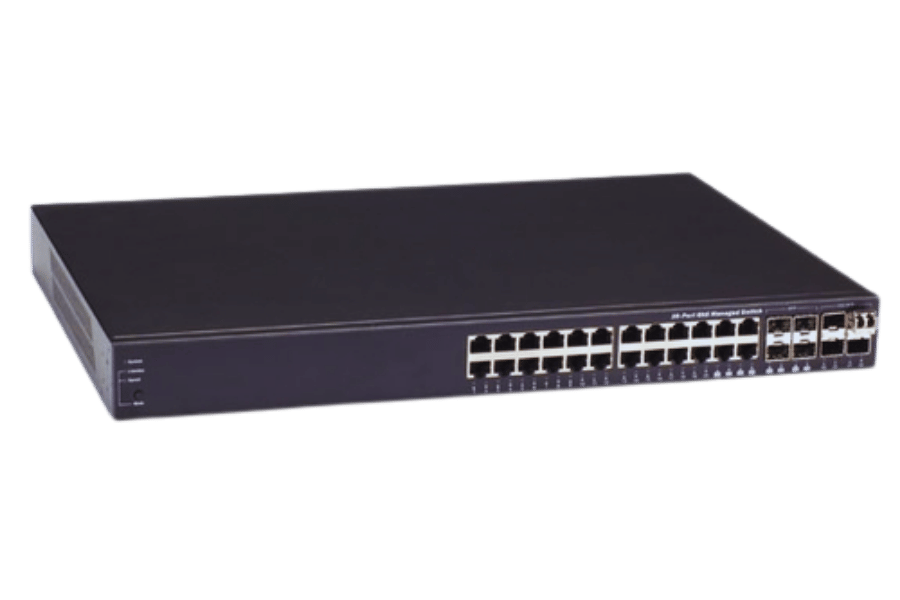

What is a 10gbe Switch and How Does it work?
A 10GbE switch is a type of network at one level of hierarchy to the LAN, which is constructed on one or more Ethernet segments for load balancing and fault tolerance. It allows n users, where n can be 15, 30, or 50, to communicate simultaneously with each other at high speed. Moreover, servers and storage systems can also be interconnected to the switch, enabling a high-end ecosystem. It operates at a control and design structure that utilizes communication between interconnected devices by forwarding a stream of packets, which will operate at minimal latency within data that is extremely responsive. One of its specific tasks is to augment network operations and issue the channels needed for performance in data volume, such as in the transfer of massive files, virtualization, and supercomputing.
Understanding 10g Technology
10g technology denotes a form of network connection that can achieve speeds of 10 gigabits per second (Gbps). It is a form of data transfer that is more advanced than traditional gigabit Ethernet, making it highly effective for businesses and applications that use bandwidth heavily. Its major benefits are low operational delays, increased effectiveness in carrying out data-driven tasks, and better flexibility for increases in network demand. This technology is uniquely useful in environments such as data centers, streaming services, and cloud computing operations that require fast and reliable services.
Components of a 10 GB Switch
A 10 GB switch is a sophisticated and efficient piece of networking equipment that has multiple components, including performance, reliability, and scalability attributes. Below is an in-depth look at the main components.:
Switching Chipset
The intellect of the 10 GB switch, the switching chipset is responsible for making decisions relative to how data packets will be routed and forwarded. Advanced chipsets are designed for high throughput performance supporting low latency, as well as the ability to manage millions of packets per second. Modern chipsets often integrate features such as quality of Service(QoS), load balancing and congestion management.
Network Interfaces (Ports)
A 10 GB switch usually consists of several 10 GbE ports, usually several of which are 10 GbE ports supporting copper(RJ45) and others are fiber(SFP or SFP+). These ports provide the interface for devices to be connected, enabling high-sped data communication. These switches have designated ports for mixed Copper Fiber Network Environments, referred to as combo ports.
Backplane
A backplane refers to an internal architecture that connects all the ports together within a switch. A backplane with high bandwidth is required to achieve the necessary 10 GbE speed. Backplanes also need to support non-blocking architectures to avoid traffic bottlenecks.
Power Supply Units (PSUs)
Configured with enterprise-grade 10 GB switches, the reliable and efficient Power Supply Units (PSUs) of switches offer energy services without any limitations or hurdles for the internal hardware components, as their functionality is comprised of delivering power. In case of a fault, multiple PSUs can be added to improve continuity and are derived from the enterprise-grade 10GB PS switches. This adds uninterrupted service, enabling the system to give power to crucial data center systems without disruption during maintenance.
Cooling System
These accomplish the keeping of component failure caused by overheating during high-speed data processing while the 10 GB switches are operating by having advanced cooling systems. Additional elements to the device’s radical cooling systems, such as sinks and fans, and even other more complex systems as liquid cooling, are also employed by the 10 gigabit switches. This features provides the 10 GB switches with options enabling faster data processing without concern, as overheating is not an issue.
Management Software
Proactive operational functions such as sophisticated management firmware or software additionally support the operational functions of configurable, manageable, and trouble-shoot enabled performance of all 10 GB switches, to the complete operational system functions with advanced systems. Also available on demand with those functions, which include monitoring also provides all the control features needed on a local basis, such as analytics of the network, traffic priorities during preset times, and enablement of support with SNMP function, VLAN, and STP, etc. Supports for external remote controlling using APIs and DevOps gadgets for easy framework merging to the 10 USB switches are provided by some of these switches too.
Memory and Buffering
Fast processing units (FPUs) of the data receiving components handles the tasks in a sequential action of reception, decomposing, and passing as a command into various parts enabling multifunctional work to be done vigorously by Other Unit Memors (OUMs) concurrently dealing with aforementioned composites, so the carrying them structure via folders termed “buffers” to ease accesss interfacing from reusing called Memorizing And Reusing Buffers stored pages preloaded with forms of pages ready for calling quos pre instruments of marking called as marking que.
Chassis Design
The physical design for a 10 GB switch is strategically focused on maximizing resilience, streamlining installation processes, and ensuring compatibility with standard rack-mount configurations. Modular designs are commonplace in enterprise settings as they allow for further scaling by simply adding additional cards or components to adjust to network demand.
Performance Metrics
In the case of evaluating a 10 GB switch, the most critical performance metrics will be port count, switching capacity (which can be measured in Gbps or Tbps), forwarding rate, and latency. For example, a more expensive switch might offer more than 1.2 Tbps total switching fabric capacity and 900 Mpps (million packets per second) forwarding rate. These metrics help determine whether they operate optimally for high-performance computing or cloud infrastructure.
Benefits of Using a 10 GbE Switch
Implementing a 10 Gigabit Ethernet Switch in an organization’s infrastructure yields numerous pros, especially for businesses whose operations involve large quantities of data. Most importantly, 10 GbE switches incur higher bandwidth for enhanced data transfer speeds, achieving a remarkable 10 Gbps. Data-intensive environments that incorporate virtualization, replication of massive datasets, video editing, and even big data analytics will find these switches invaluable.
Moreover, the additional power is beneficial for real-time applications such as cloud computing or massive scale financial operations. For instance, numerous enterprise-grade 10 GbE switches achieve latencies as low as a couple of milliseconds ensuring speedy transmission of data with little downtimes, further addressing issues concerning operational efficiency.
Additional features such as support for growing server and storage requirements without loss of efficiency and increased load balancing during peak periods instantly makes scalable 10 GbE switches a dependable asset. These arbitrary network border controls, also referred to as link aggregation, enable the seamless growth of organizations without compromising service delivery.
Advancements in Ethernet standards and adoption have lowered the cost barriers of 10 GbE technology, once considered a premium feature. This brings greater cost efficiency to mid-sized and large enterprises looking to protect their investments in network upgrades. In addition, compatibility with both modern and legacy network devices allows organizations to adopt 10 GbE technology incrementally, minimizing the need for a complete hardware overhaul.
The unparalleled speed, reliability, and efficiency of 10 GbE switches enable businesses to effortlessly address and anticipate contemporary and future networking demands.
How to Choose the Right 10g Ethernet Switch for Your Needs?
Key Features to Look for in a 10 GbE Switch
As with any network equipment, picking out a 10 GbE switch requires careful consideration of certain aspects to ensure that it meets the expectations of your network. Presented below are the most important things to look out for:
Port Efficiency and Performance
Different switches offer varying port density, ranging from 8 to above 48 ports. Smaller offices might require lower port density, however, larger enterprises with complex business structures require higher port density. It is also essential to check that each port provides 10 Gbps of throughput to handle substantial bandwidth.
Switching Capability and Forwarding Rate
Data handling capabilities need to be complemented by sufficient switching capacity and forwarding rate. For example, the forwarding rate of a 24-port 10 GbE switch is limited to 480 Gbps of switching capacity. Hence, such a switch will still allow for considerable packet loss when the traffic load is intensive.
Layer 2 and Layer 3 functions
More advanced routing options will require greater network resources in Layer 3, however, for less complex networks, Layer 2 suffices. From basic connectivity to routing protocols such as inter-VLAN and routed protocols, Layer 3 is recommended for sophisticated network designs to effectively manage complex structures.
Support for Power over Ethernet
VoIP phones, security cameras, and wireless access points for a particular network require PoE or PoE+ functionality. This feature enables power to be sent alongside data over the same Ethernet cable. This helps eliminate excess cabling in junction boxes, simplifying network deployments.
Management Options
A multitude of modern switches are available with unmanaged, partly managed, and fully managed options. Fully managed switches are often preferred in enterprise environments because of their fine-grained control over traffic, VLANs, QoS, and security policies.
Energy Efficiency
When considering the operational costs of a network switch, energy efficiency becomes critical. Look for network switches featuring Energy Efficient Ethernet (EEEt) or similar technologies, designed to minimize power during low activity periods without sacrificing responsiveness.
Redundancy and Reliability
These elements enable uninterrupted network service continuity despite hardware failures, ensuring continuous operation during outages. Adding redundant power supplies, hot swappable modules, and link aggregation protocols improves the overall reliability of the network.
Scalability and Future Proofing
Additional strategically placed switches with an option for modular expansion and support for 25 GbE or 40 GbE help sustain your network investment while facilitating its future growth and evolution.
Security Features
Firewall systems, advanced access control lists (ACLs), and 802.1X authentication contribute significantly toward safeguarding systems from unauthorized access and cyber attacks. These measures are essential in today’s interconnected world.
Cost-Performance Balance
Lastly, balancing the budget and performance metrics is also a consideration. While upper-tier switches come with the latest technologies, many offer comparable features to mid-tier switches at a fraction of the price, making them a more sensible option for a multitude of enterprises.
Addressing these issues ensures the chosen 10 GbE switch will be aligned with your business network needs, operates hassle-free, and allows for easy scaling in the future.
Comparing Managed vs. Unmanaged Switches
When deciding between managed and unmanaged switches, it’s important to comprehend their distinctions to pick the decision that best fits your network’s requirements.
Managed Switches
Businesses make use of managed switches as they have a greater control over the network traffic management. Other, more sophisticated capabilities that managed switches offer include VLANs, QoS, port mirroring, and access control lists. Managed switches are customizable, therefore they permit the network administrator to monitor the system’s functionality, fix existing problems, and end as well as maintain flawless functioning of the system. Because these switches are customizable, they fit best in large and complex networks that have heightened security needs.
There is evidence and statistics that managed switches support drastically greater networks that can have thousands of connections simultaneously. According to industry reports, a managed switch with 48 ports can support up to 8,000 MAC address entries, which permits scalability for budding businesses. managed switches are often sold together with monitoring equipment which provides managed switches with analytics and diagnostics that can improve uptime and performance enhancements.
Unmanaged Switches
Unmanaged switches are configured in a way to is plug and play, which requires no configuration. These switches make connections on behalf of users between devices and manage the traffic automatically without manual intervention, making these switches well-suited for small offices, home setups, or temporary networks. Although lacking other advanced capabilities, unmanaged switches are less expensive, which makes them ideal for low-networking-complexity facilities. For instance, for simple basic connection needs, unmanaged switches with up to 16 ports are available at a significantly lower price than managed switches.
Use Cases and Considerations
Whether managed or unmanaged switches will be adopted is primarily dependent on the complexity, scale and needs of theetwork infrastructure. Managed switches are ideal for networks that have high performance, aggressive security requirements, and need prioritization of traffic. On the other hand, smaller setups with simple plug and play connectivity can save money using unmanaged switches.
Market Trends
The demand for managed switches across the networking equipment markets has steadily grown due to increased focus on scalable IT infrastructure and fortified global IT backbone security. However, unmanaged switches still offer great value for individual users and small to medium business segment users and continue to play an important role in the networking ecosystem.
Considering the unique capabilities of each switch type together with the operational and budget needs, companies can select the solution that best fits their organizational needs.
Understanding SFP and RJ-45 Port Options
SFP (Small Form-factor Pluggable) ports and RJ-45 ports fulfill different functions within a specific networking ecosystem. SFP ports allow greater flexibility for long-distance data travel as they are used for fiber optic as well as Gigabit Ethernet connections; therefore, they facilitate greater distances and higher speeds. In the case of business enterprise environments, SFP ports can be utilized to connect switches over long distances.
Conversely, RJ-45 supports Ethernet cables as well and supports copper connections. RJ-45 ports are more effective over a limited range, including intra-building networks, which makes them ideal for short distances. Their popularity also stems from the low-cost nature of RJ-45 ports.
The balance between SFP and RJ-45 ports lies within the distance, speed, and infrastructure requirements of the specific network.
How to Optimize Bandwidth with a 10 GB Ethernet Switch?
Leveraging VLAN and QoS Settings
To make the most of the bandwidth on a 10 Gb Ethernet switch, VLAN and QoS configurations are fundamental:
- VLAN (Virtual Local Area Network): VLANs help control and manage network traffic by creating subdivisions on a single tangible network infrastructure that can be managed as separate virtual networks. This eliminates cross-VLAN traffic by restricting data transmission to the intended recipients within the designated VLAN. Leverage VLANs to separate and isolate high value or sensitive to delay-type traffic.
- QoS (Quality of Service): QoS provisions reserved bandwidth for more important data streams and gives less priority to less important information. Set QoS config for higher priority to services such as VoIP, video calls, or real-time data transmission. Other non-essential services that consume a lot of bandwidth will not impact critical services.
With proper implementation of VLAN and QoS, you will maintain controlled traffic distribution in the network, thus ensuring optimal performance on a 10 Gb network.
Enhancing Network Performance with 10gbase-t
To improve network performance with 10GBASE-T, I would target a couple of areas. To begin with, I would pay attention to cable organization in the office as it pertains to the ergonomic layout of the workspace by using proper office furniture like desks and specialized storage cabinets. The storage compartments help in keeping the office space tidy, which boosts productivity since Cat6a as well as Cat7 wires are capable of withstanding the bandwidth along with frequency demands of 10 Gb networks. After this, I would encourage VLAN-based traffic segmentation and set appropriate QoS parameters to favor primary application traffic to improve the network discipline for his processes at hand. Aside from this, I would ensure that office switches as well as other connected devices have their firmware actively checked and updated to lessen incompatibility issues and increase operational efficiency. Following these procedures would ensure robust, dependable wireless access across the network that is hassle-free.
Configuring Routing and Switching Capacity
Achieving optimal network performance involves the configuration of routing and switching capacity that addresses scalability, security, and efficiency. Modern enterprise networks make use of routing protocols such as OSPF (Open Shortest Path First) and BGP (Border Gateway Protocol) that dynamically select the most efficient data traffic routes as the network conditions change with minimal delay. OSPF, for example, uses a link-state algorithm that provides efficient route calculation by storing a complete map of the network’s topology.
Switching capacity should match the anticipated throughput of the network while accommodating for expansion. Currently available high-performance switches can support switching capacities greater than 1 Tbps, which is essential to an enterprise setting with large amounts of data movement. The use of Layer 3 switches further increases performance by enabling routing capabilities in the switching fabric, which decreases the burden on external dedicated routers.
Stackable or modular switching systems add redundancy and further enhance flexibility, providing additional easy scaling. Multi-Chassis Link Aggregation (MLAG) technology creates interconnections between switches but preserves logical relationships with other network devices, allowing for load balancing and failover.
Most recent advancements have included Software Defined Networking (SDN), which permits greater programmability of the processes of routing and switching. With SDN controllers, administrators can adjust and redistribute resources as well as prioritize network traffic in real time, adapting to changing conditions to efficiently use the routing and switching resources in sophisticated environments.
What are the Installation Requirements for a 10gbe Network Switch?
Choosing the Right Cabling for Your Setup
Choosing the right type of cabling is important for the effective functioning of 10GbE (10 Gigabit Ethernet) networks. When planning your setup, consider two major types of cabling – copper wires and fiber optic wires which offer different benefits depending upon the distance, cost, and scalability including customization of the setup.
1. Copper Cabling (Cat6a and Cat7): Copper wires such as Cat6a (Category 6a) and Cat7, are commonly used for short range 10GbE connections which is up to 100 meters. Cat6a cables are effective in preventing “crosstalk” or interference from other signals (crosstalk) from other high-density cables due to shielding, ensuring reliable performance in busy environments. Cat7 cables, although not as mainstream, are shielded from external interference, which allows for greater resistance to interference. The practicality of copper cabling stems from its lower costs and compatibility with older network switches.
2. Fiber Optic Cabling (OM3 and OM4): Fiber optic cables are the cables of choice for long-distance data transfers. Multimode fiber options, OM3 and OM4, support a range for data transfers between 10GbE networks to 300 meters and 400 meters, respectively. Single-mode fiber optics are more costly but offer longer ranges, exceeding 10 kilometers, which is beneficial to large-scale data centers or metropolitan area networks, making those connections.
Comparison and Information:
- Expenses: The initial cost of copper cabling is lower than that of fiber optic, but with increased distance, the cost of repeaters and signal amplifiers for copper will add up, making fiber optic more cost-effective.
- Functionality: Fiber optics surpass copper in terms of distance, transmission speed, and latency, while copper excels in local short-range setups.
- Resistance: Fiber cables are immune to EMI, while copper cabling would require additional shielding in EMI-heavy environments.
In the end, it is about the network’s requirements such as distance, budget, and environmental conditions that will determine what type of cabling you will go with. Ensuring switches and the type of cable employed work in harmony is also critical for effortless functioning. For most installations, Cat6a is adequate, but for long-term investment and high-performance networks, fiber optics are the ideal option.
Setting Up the 8-Port 10 G Configuration
Designing an 8-port 10G network requires attention to detail while choosing devices, hardware, and configuring all units for peak efficiency. Below is an in-depth walkthrough of the configuration setup process.
Choosing The Correct Devices
For an 8-port 10G setup, a 10G switch is essential. Cisco, Netgear, and Ubiquiti offer widely used models that may be of interest. Pay close attention that the switch has at least 8 10G Ethernet ports and meets all necessary protocol stipulations like jumbo frames and VLANs. Furthermore, select the appropriate transceivers, SFP+ or RJ45, as well as the appropriate cabling, which includes fiber optics for longer distances or Cat6a cables for shorter ones.
Cabling Standards
Where possible, optical fiber around the 55-meter mark, with LC connectors outfitted with SFP+ optical modules, is the ideal choice. At shorter distances, use twisted pair Ethernet like Cat6a or Cat7 with a reliable shield for up to 55 meters, ensuring low crosstalk. A multi-mode OM4 fiber can support distances of up to 400 meters at 10 Gbps speeds.
Switch Configuration
Connect using a web browser or CLI to access command features within the switch. Ensure the following settings are in place:
Port Aggregation (LAG): Allows grouping multiple switch or router ports for a single connection to increase data flow and redundancy (if available for use).
VLAN: For additional security and improved traffic manipulation, break your network into distinct VLANs.
QoS: To enhance the performance of specific applications or devices, reduce latency by prioritizing them.
IP Addressing: Based on the configuration of your network, assign IP addresses either statically or dynamically.
Testing and Monitoring
After configuring the system, test the configuration by performing large file transfers or speed tests. Iperf is one of many tools available that can check throughput and latency. Monitoring provides performance metrics which enable analysis beat issues intelligently such as SolarWinds and PRTG.
Performance Considerations
All connected devices must support 10G to avoid bottlenecking elsewhere on the network. For example, there is no alternative to replacing the server and workstations with 10G network interface cards (NICs) to utilize the switch’s full potential.
Completing the instructions detailed above will set up a reliable 10G network optimized for high data throughput in critical business operations or other fields that demand constant resource access.
Ensuring Auto-Negotiation and Switch Support
The importance of communication between network devices is facilitated through auto-negotiation. It serves a purpose where the best common operational settings, like speed and mode, are selected automatically. Auto-negotiation is supported in modern 10G switches so that network configuration is simplified and compatible with devices using older Ethernet speeds, like the legacy Gigabit Ethernet devices.
When setting up a network switch, ensure that each component interfaces with it properly, including the network interface cards (NICs) and the cables which are required to meet 10G standards. To achieve 10Gbps speeds in distance up to 100 meters, Cat6a or higher cables are required. Using older cables, Cat5e or Cat6, may lead to poor quality transmission, especially over 55 meters.
Check the firmware version of the switch because out of date firmware might lead to complications. Newer versions will often include fixes to the auto-negotiation and bug protocols. Keeping an updated firmware ensures the switch is reliable and maintains compatibility with newer network standards.
Mismatched duplex configurations, as previously mentioned, can cause critical operational difficulties. All devices connected to the 10G switch must be configured to auto for both speed and duplex settings. This avoids a scenario where one device is in full duplex while the other defaults to half duplex, which would result in collisions or packet loss. Proper configuration as well as compatibility have to be ensured for all devices to guarantee smooth handshaking, which in turn greatly increases the advantages of a 10G backbone.
How to Maintain and Troubleshoot Your 10 G Ethernet Switch?
Regular Maintenance Tips for Ethernet Switches
Perform Updates to Firmware Without Delay
Always performing switch firmware updates ensures security improvements as well as the addition of new features. Most switch vendors optimize the functionality of their devices periodically by releasing firmware updates to resolve bugs and improve performance. For example, newer firmware may enhance compatibility with new devices. Do not forget to schedule these updates during maintenance windows to avoid interrupting network services.
Use Historical Network Port Traffic Data for Analysis
Port usage and auxiliary traffic should be analyzed regularly to detect potential bottlenecks as well as low and high usage cases that may not be associated with productive work and may have malicious intent. Such functions are performed by various network system utilities like SNMP. Network managers can employ the provided statistics to adapt the network properly, optimizing its performance. Network congestion may warrant the installation of additional switches or an increase in bandwidth provisions.
Reduce Obstructive Heating Causes
Dust lowers the longevity of computer hardware by causing overheating through blocking a device’s heat sinks. Increased dust around the switch hardware can cause overheating. To reduce this problem, Switches and other hardware should be regularly cleaned using compressed air. This is crucial in a Data Center or any room that has poor airflow. Increased reliability translates to long device life with consistent performance.
Check Cabling and Connections
Intermittent connectivity issues, as well as network performance reduction may occur due to damaged cables or loose connections. Ensure that you check all Ethernet cables for their integrity. They should not have tears, fraying, or exposed wires, which indicate damage. In order to achieve maximum data transfer rates, use the appropriate Cat5e, Cat6, or Cat6a cables for your specific setup.
Make Use of Built-In Diagnostics
Ethernet switches today come with built in diagnostics which have the capaiblities of real time problem detection such as loop detection or connection failures. These diagnostics can mitigate a lot of troubleshooting effort by determining things like speed or duplex setting mismatches. Such checks, when done regularly, ensure your network is working at its peak performance.
Install More Advanced Cooling Systems
Placing high performance switches like 10G switches, during operation, consumes a lot of power resulting in the generation of significant heat. Therefore it is recommended to place them in temperature controlled environments to enhance hardware lifecycle. For high density setups, additional thermal throttling aids such as dedicated rack cooling systems may be required.
Following these maintenance procedures can amplify the lifetime and productivity of an Ethernet Switch while reducing any potential network interruptions a business may face. Maintaining organizational systems properly safeguards the active performance of the systems as well as the company’s productivity by providing a solid network backbone capable of supporting growth.
Common Issues and Solutions in 10 GbE Switching
1. Problems Resulting From High Latency
Reason: Subpar network device configurations and inadequate cabling.
Resolution: Check switch configurations and inspect if the cables are Cat6a or better for copper connections for 10 GbEs.
2. Signal Interference
Reason: Use of transceivers and cables that do not meet required standards.
Resolution: Employ properly manufactured certified transceivers and cables designed to work with 10GbE for precise functionality.
3. Overutilization Of Ports
Reason: Limited available ports with too much traffic.
Resolution: Load balancing and switch uplifts to those with more ports available or bandwidth aggregation are also possible solutions.
4. Overheating
Reason: The presence of an air conditioning unit or activated cooling device leads to restricted airflow.
Resolution: Improve airflow, use external cooling directly in the rack, and position racks so the operating temperature remains within recommended guidelines.
5. Incompatibility Caused By Gaps In Hardware Logic
Reason: Outdated firmware on 10GbE switches.
Resolution: Periodic updates to the firmware using the most recent version via the manufacturer’s site enhance performance and address unforeseen issues.
These common problems can be swiftly and strategically solved, allowing companies to seamlessly streamline their 10GbE networks.
Utilizing Smart Managed Features for Diagnostics
Smart managed features offer powerful tools for diagnosing network-related problems accurately and effortlessly. These include automated port diagnostics, real-time traffic metering, and notification alerts. By leveraging these features, administrators no longer have to take manual steps to troubleshoot misconfigurations or bottlenecks. The use of incorporated diagnostic logs and packet tracing also simplifies error identification, thus decreasing the period of system inactivity. All system diagnostic features should be properly set and user-friendly, accessible through the management interface for maximum outcomes.
Frequently Asked Questions (FAQs)
Q: What is a 10-gigabit Ethernet switch, and how is it different than a standard gigabit switch?
A: A 10 Gigabit Ethernet Switch, often referred to as a 10GB switch, is a type of network switch that enables data transfer at the rate of up to 10 Gbps, which is 10 times greater than the 1G offered by gigabit switches. It also improves performance in high-demand environments because of accelerated data transmission and reduced latency.
Q: What are the benefits of a managed switch compared to an unmanaged ethernet switch?
A: A managed switch offers features such as VLANs, traffic prioritization, as well as monitoring of general health which gives greater control over network resources, making it more powerful than an unmanaged switch. An ethernet switch also makes for easier configuration, but because of lack of complex management features, it only works well with small networks.
Q: In what aspects do RJ45 and SFP ports differ on a 10GB switch?
A: RJ45 ports on a 10GB switch are suitable for shorter distances because they make use of copper cabling. SFP ports are more appropriate for longer distances since they use fiber optic connections and grant access to various transceivers, making them ideal for GBIC or other long-haul applications with enhanced flexibility and range
Q: What is the benefit of a PoE switch in a 10-Gigabit network?
A: A PoE switch can enable power to be sent to IP devices such as cameras, phones, and access points directly through Ethernet directly, without needing to use power adaptors, which makes deploying networks easier, especially in remote locations with limited power outlets.
Q: Can you explain the importance of multi-gigabit support in a 10GB switch?
A: Multi-gigabit support allows the 10 Gb switch to function at different levels including 2.5G, 5G, and 10G. This is important as it provides flexibility and compatibility with devices that will not fully support 10G speeds for a number of years. This helps in optimizing the network and providing gradual upgrades to different devices.
Q: What are the typical applications for an 8-port 10G switch in a network?
A: An 8 port 10G switch is optimal in scenarios that involve data centers, enterprise networks, or even video editing, which require high speed transfers and low latency data rates. It is also ideal for tightly packing several high-performance workstations or servers.
Q: How does a fanless 10GB switch benefit a network environment?
A: Places like offices and home studios require silence, which is why a fanless 10GB switch is perfect for those environments. Such an apparatus is also useful in reducing mechanical failures caused by fans, thus enhancing reliability and longevity of the 10GB switch.
Q: What role does a TP-Link 10GB switch play in a small business network?
A: For a small business, a TP-Link 10GB switch comes in handy for high-speed networking as it powers demanding functions such as VoIP, video calls, and even file sharing. It can also offer competitive features to price, making the business gain greatly in performance and speed.
Q: Why might an enterprise choose a fiber switch over a copper-based 10GB switch?
A: Compared to a copper-based 10GB switch, a fiber switch is able to support longer cable runs with lower signal degradation which is why enterprises may choose it. Fiber switches are superior to copper in terms of bandwidth and reliability, making them ideal for expansive networks or data centers with critical performance requirements.
