What is a Layer 3 Switch?

Layer 3 switch is a network device with a routing selection function created on the basis of a Layer 2 switch. It can implement network functions and forward packets based on ASIC and FPGA. Layer 2 switch performs the data frame or VLAN transmission function based on the MAC address of the data link layer. Layer 3 switch performs the routing selection and packet filtering functions based on the IP address of the network layer.

Layer 2 switch

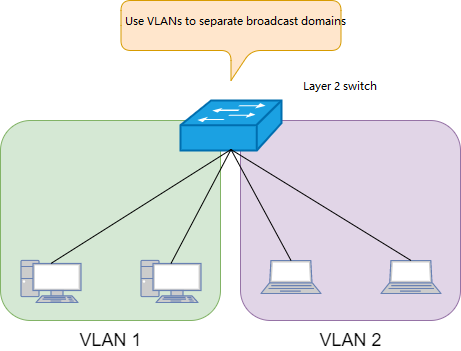

Layer 2 switch: By using VLANs to separate broadcast domains, terminals under the same VLAN can exchange data frames. When there is a need for communication between terminals of different VLANs, the routing function must be used, that means to add an additional router.

Layer 2 switch 2

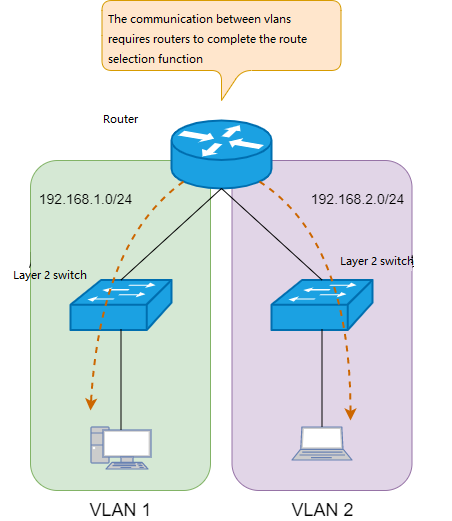

Layer 2 switches and routers are used in combination to complete Cross-VLAN communication, while layer-3 switches can directly complete the communication between different VLANs without other network equipment.

Layer-3 switch

At present, the internal network core switches are all using Layer 3 switches. Layer 3 switch is used to forward packets within the Intranet composed of Ethernet, while router is used as a gateway between the Internet and the intranet.

What is the Difference between Layer 3 Switches and Routers?

Layer 3 Switch vs Switch

Name	Layer 3 Switch	Router
Hardware	Box type, frame type	Desktop type, box type, frame type
Data frame processing	Hardware processing based on ASCI	CPU based software processing
Performance	Linear speed processing	Slower than a Layer 3 switch
Interface	Ethernet (RJ-45, optical transceiver)	Ethernet (RJ-45, optical transceiver), serial port, ISDN, ATM, SDH, etc.
Unsupported protocols and functions	Dial-up access (PPP, PPPoE), high QoS, NAT, VPN, status detection, high security, VolP, and so on	STP/RSTP, LAN tracking, IEEE 802.1X, private VLAN, stacking, etc

Layer 3 switch only support the data link layer protocol of Ethernet and the network layer protocol of IP network.

Router: In addition to the IEEE 802 standard, the physical layer and data link layer also support other protocols, including ATM, SDH, and serial ports. The network layer and transport layer also support protocol stacks other than TCP/IP, such as IPX, AppleTalk, and so on. These functions are completed by software running on the CPU, compared to the layer 3 switch, the speed will be much slower. but there are also many functions that must be handled by the router CPU, such as remote access, security functions, etc.

What is the Architecture of the Layer 3 Switch?

The constituents of a layer 3 switch include control plane, data plane, backplane, and physical interfaces. The same architecture applies to high-end routers and firewalls. The three-layer switch divides the interior of the hardware device into two areas, that is, the control plane mainly with routing and management functions and data plane mainly with data-forwarding functions, so as to realize the system architecture of high-speed packet forwarding.

Components of Layer-3-Switch -1

Components of Layer-3-Switch-2

Hardware composition	Description
control surface	The hardware is controlled by CPU based software processing. Overhead operating system remanagement, administrator user interface, routing protocol processing and so on
data plane	The actual data transmission is carried out by hardware processing based on ASIC, FPGA and network processor. MAC frame transmission is completed at Layer 2 and IP packet transmission at Layer 3. Necessary access control list and QoS related processing is also carried out during transmission
backplane	Data is transferred between physical interfaces. The backplane supports three modes: shared bus mode, shared memory mode, and crossbar mode. The Ethernet standards for connecting cable cards in the subrack are IEEE802.3ap and IEEE802.3ba
physical interface	Send and receive data frames with other hardware. Use RJ-45 or optical transceiver (SFP, etc.) connectors in Layer 3 switches

When the internal structure of the hardware is divided into a control plane and a data plane, the transmission of packets requires the use of FIB (forwarding information base) and adjacency table information. This method of IP packet transmission using FIB and adjacency table information is called express forwarding.

FIB and Adjacency table

Entry	Illustration
FIB(forwarding information base)	The entry is generated on the data plane based on the routing table information on the control plane and consists of the current valid destination subnet, next hop, and output interface combination
Adjacency table	The entry that is generated on the data plane based on ARP table information and consists of information about the current valid destination host and output interface

Routers use CPU for packet forwarding, while Layer 3 switches use ASCI instead of the CPU for faster packet forwarding.

Boxed product architecture 1

Boxed product architecture 2

Layer 3 switches combine the FIB and adjacency tables into a single entry called the FDB (forwarding database), which is registered in memory and processed by hardware for high-speed retrieval.

What is Multilayer Switching?

Except for layer 2 switches, switches above layer 3 (inclusive) are collectively referred to as multilayer switches. A layer-3 switch that has network functions such as IP routing and can control the access to the TCP port number of the transport layer through the access control list, also called Layer 4 switch. A switch that can support access control up to the TCP level is called a Layer 4 switch. A switch that can perform load balancing and other operations based on the application layer parameters of HTTP and HTTPS is called Layer 7 switch. Some manufacturers distinguish between network devices and routers that deal with the application layer as different types of products. But the so-called multi-layer switch is a high-speed network equipment for business processing of each layer based on ASIC and FPGA hardware processing.

What is a Load Balancing Device?

Multiple clients connecting to a server at the same time can cause overloaded processing power of server. If using multiple servers providing the same service, by using load balancing device, the client’s request can be distributed to each server for processing. A load balancing device can be professional setting, which can also be application running on the server. Dedicated devices will have Ethernet interfaces, which is a kind of multilayer switch, so to speak. There are also routers with load balancing capabilities.

The load balancing dev ice generally allocates a virtual IP address, and all client requests met through Virtual IP address, which is forwarded to the actual IP address of the server through the load balancing algorithm. Using load balancing devices can improve scalability and reliability.

Virtual server

Load balancing equipment is not only suitable for servers, but also for security devices such as firewall and proxy server.

Load Balancing Algorithm Types

Algorithm name	Description
Round Robin	A distributed algorithm for load balancing in sequence. This algorithm is best used when the processing capacity of each server is the same and the processing capacity of each service is not different. For example, if there are three servers, the order is 1→2→3→1→2→3→1
Least Connections	An algorithm that handles communication with the server with the fewest connections among multiple servers. Even if the processing capacity of each server is different, the processing capacity of each service is not the same, which can reduce the load of the server to a certain extent
Weighted Round Robin	An algorithm that attaches a certain weight to each server in the polling is suitable for the case that the processing power of the server is different. For example: server 1 additional weight 1, server 2 additional weight 2, server 3 additional weight 3, the order is 1→2→2→3→3→ 1→2→2→3→3→3→3→1
Weighted Least Connections	An algorithm that assigns a weight to each server in the fewest connections algorithm, assigns each server the number of connections to handle in advance, and redirects client requests to the server with the fewest connections
IP address hashing	An algorithm that manages the hashes of source and destination IP addresses to combine and forward packets from the same sender (or packets destined for the same destination) to the same server. When the client has a series of services to be processed and must repeatedly communicate with a server, this algorithm can take the flow (session) as the unit to ensure that the communication from the same client can be processed directly in the same server
URL hashing	An algorithm that forwards requests sent to the same URL to the same server by managing the hashing of client requests for URL information

What is SSL Acceleration?

SSL acceleration is a function of dedicated load balancing equipment, and the internal device that performs this function is called SSL accelerator.

SSL Communication

Encrypting and decrypting the transmitted data during SSL communication with the server requires fairly complex calculations, which further increases the processing load on the server CPU. Compared to HTTP traffic that does not perform encryption and decryption, the processing load of HTTPS is 10 times that of HTTP. At this time, by using an SSL accelerator to decrypt the client’s HTTPS request and convert it into an HTTP request before forwarding it to the actual server, the processing load on the server CPU can be reduced. In this way, the overall system can not only improve the server response speed, but also reduce the number of servers, and can forward more Web service content per unit time.

How Many Types of Layer 3 Switches according to the Performance Classification?

According to the backplane capacity of the layer 3 switch, it can be divided into high-end switch, mid-range switch and low-end switch.

High-end Layer 3 Switches

The frame-type layer 3 switch is composed of routing engine, switching fabric, line card module, fan module and power supply module, and is generally used as the core switch of the enterprise in the data center.

High-end Layer 3 Switches

In order to improve the reliability of the switch, all modules except the line card module provide redundant structure. Power or fan modules are typically 1+N or N+N redundant, and routing engines are typically 1+1 redundant. Layer 3 Switches generally form a three-layer redundancy structure with stacking multiple devices to improve the availability of the entire system.

Midrange Layer 3 Switches

Midrange layer 3 switches are generally box -type switches or frame-type switches with a maximum number of slots of 4, which are used for aggregation switching of enterprise core switches and access switches.

Midrange Layer 3 Switch

Low-end Layer 3 Switches

The low-end Layer 3 switch is generally a box -type switch or a desktop switch, which is used as an access switch for an enterprise, usually with 24 ports or 48 ports. Some act as access points for IP phones or wireless LANs and can also use power over Ethernet (PoE) directly.

Low-end layer 3 switch

What are the Functions of Layer 3 Switches?

Although the functions provided by each manufacturer’s layer 3 switch are different, these functions are roughly divided into several categories: authentication, management, routing protocol, QoS, IP tunneling, VLAN, STP, and so on.

Functions of Layer 3 Switches

OSI reference model	Classification	Function
Application layer	Authentication, management	SNMP、RMON、syslog、DHCP、NetFlowFTP、IEEE 802.1X etc.
Network layer, transport layer	Routing protocol	Static route, RIPv1/v2, OSPF, BGPv4, IS-IS, multicast route selection, RIPng, OSPFv3, BGP4+, policy-based route selection, etc
	QoS	IEEE 802.1p、LLQ、WFQ、RED、Shaping、Bandwidth control,etc
	IP Tunnel	IPv4 over IPv6、IPv6 over IPv4,etc.
	other	Filtering, load balancing, and VRRP
DLL(data link layer)	VLAN	Port VLAN, IEEE 802.1Q(tag VLAN), private VLAN, Uplink VLAN, etc
	STP	STP(IEEE 802.1D、RSTP(IEEE802.1W)PVST+、MSTP(802.1s)etc.

In a layer 3 switch, the function of group management is performed by the CPU software directly. User direct communication is processed by the ASIC (hardware) to achieve high-speed forwarding of packets.

Functions of layer 3 switch

What is a VLAN?

A broadcast domain consisting of one or more hubs can be called a flat network. Interconnected terminals receive all broadcast frames from the network. As the number of connected terminals increases, so does the number of broadcasts, and the network situation becomes more mixed. In this case, it is necessary to use VLAN (Virtual Lan) technology to logically segment the entire flat network. A VLAN corresponds to a broadcast domain, and the broadcast domains of different VLANs are isolated from each other, so the scale of broadcast traffic within the broadcast domain can be controlled.

VLAN technology

The switch can easily modify the properties of the physical port through setting, so that the physical port can be added to a VLAN without changing the corresponding physical line. Communication between VLANs requires routing, and it is not possible to communicate with the endpoints of different VLANs without the help of routers or layer 3 switches, so security is also guaranteed.

What is a Port-based VLAN?

Port-based VLAN is to set the VLAN ID on the port of the switch, and multiple ports with the same VLAN ID form a VLAN. In the initial state of the switch, the default VLAN ID of all ports = 1 (that is, VLAN 1), and the VLAN ID of any port can be set. For example, if you modify a port to VLAN ID = 2, then this port belongs to VLAN 2.

What is a Tag VLAN?

When a VLAN needs to span multiple switches, trunk port and tag VLAN will be used. The tag VLAN completes the receiving and sending of data frames through the trunk port, and the data frame needs to add 4 bytes of IEEE 802.1 Q to define header information (that is, VLAN tag information). The process of labeling data frames is called tagging. When tagging is complete, the maximum length of the data frame changes from 1518 bytes to 1522 bytes, with 12 bits of VLAN ID information, that is, the maximum number of supported VLANs is 4096.

Tag VLAN

Untagged Ethernet Data Frame

In Ethernet, the value of TPID is 0x8100 in a data frame. If the value behind the source address is not 0x8100, then it is not TPID information, but identified as ” length/type”. When the value of Length/Type is below 0x05DC, it indicates the length of the data frame; The value above 0x0600 indicates the type of data frame. The data frame type values: IPv4 is 0x0800, ARP is 0x0806, IPv6 is 0x86DD, and so on.

A switch that does not support IEEE 802.1Q will treat 0x8100 as a data frame type because it does not recognize the TPID, but there is no data frame of 0x8100, and the switch will discard it as an error frame. IEEE 802.1Q also defines a field: TCI, which can be divided into 3 types: PCP, CFI and VID.

3 Types of TCI

Name	Description
PCP(Priority Code Point)	Indicates the priority of data frames defined in IEEE 802.1Q, with the lowest level being 0 (0b000) and the highest level being 7 (0b111).
CFI(Canonical Format Indicator)	For standard MAC addresses, the value is 0, and for non-standard MAC addresses, the value is 1. On the Ethernet, the value is usually 0
VID(VLAN ldentifier)	Indicates Id of the VLAN to which the data frame belongs. 0 (0x000) is used only to identify the priority in the PCP. 4095 is the reserved value. The available value ranges from 1 to 4094

What is a Native VLAN?

Native VLAN is for trunk ports. If the data frame is untagged before entering the trunk port, the trunk port will tag it with the native VLAN, and the data frame will be transmitted as the native VLAN. If the frame is tagged before entering the trunk, and the trunk port allows the VLAN ID to pass, the frame passes. VLAN data frames that are not allowed by the trunk port are abandoned. By default, the switch uses a VLAN with a VLAN ID of 1 as the native VLAN. Native VLANs are customizable and typically use a VLAN other than VLAN 1 as the native VLAN as the management VLAN.

What is a Trunk Port?

When using tag VLAN to pass the VLAN ID to other switches, first set the trunk port. The trunk port can belong to multiple VLANs and communicate with other switches for sending and receiving frames of multiple VLANs. The link between the trunk ports of two switches is called a trunk link.

Trunk link

Access port and access link correspond to trunk port and trunk link. The access port belongs to only one VLAN, and the access link transmits only
one VLAN data frame.

What is a Private VLAN?

Private VLAN, also called PVLAN, refers to the function of constructing a layer of VLAN inside the VLAN, also called multi-layer VLAN.

Private VLAN

PVLANs can further segment broadcast domains, reduce broadcast traffic within VLANs, and secure communications. Hotels, apartments and other places use this function to control the connection between the server or gateway and the terminal, so that different terminals cannot communicate with each other. PVLAN consists of primary VLAN and secondary VLAN, the secondary VLAN is associated with a primary VLAN.

What is the Difference between Static and Dynamic VLANs?

By inputting switch commands, a switch port is fixedly assigned to a certain VLAN. This VLAN division method is called Static VLAN. In contrast, the method of automatically assigning a certain VLAN according to the terminal or user information of connection port is called Dynamic VLAN.
Specifically, the switch determines which VLAN the port belongs to based on the MAC address of the endpoint or based on 802.1X authentication. In a dynamic VLAN, an endpoint acquires a fixed VLAN regardless of which switch it is connected to. MAC address -based authentication is possible through a database inside the switch, but in most cases dynamic VLANs are implemented using a RADIUS server.

Dynamic VLAN

How do VLANs Interoperate?

Layer 2 Switches

After multiple VLANs are set on a layer 2 switch, data frames can only be forwarded within the same VLAN in a single switch and cannot be forwarded between different VLANs. When it is necessary to forward data between multiple VLANs, a trunk link is generally used to connect the router, through which routing is performed between VLANs.

Layer 3 Switches

Layer 3 switch can perform routing directly between VLANs inside the switch.
