NVIDIA MFP7E20-N050 Compatible 50m (164ft) 8 Fibers Low Insertion Loss Female to Female MPO12 to 2xMPO12 Polarity B APC to APC LSZH Multimode OM4 50/125

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:50765
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Compatible Brands
NVIDIA
Length
50m
FM PN:
MPO8YFLOM4BA50
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

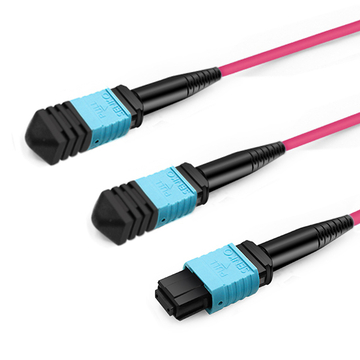

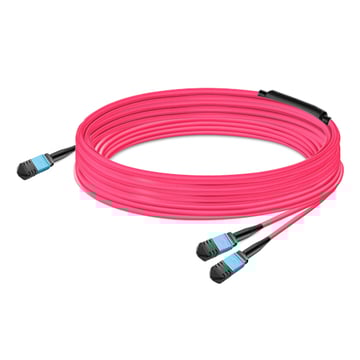

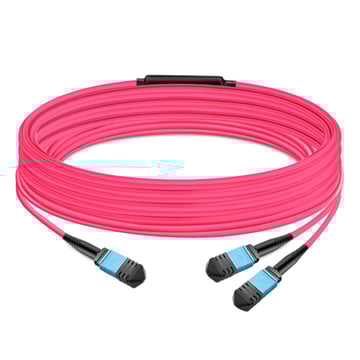

NVIDIA MFP7E20-N050 Compatible 8 Fibers OM4 Multimode MPO Y Splitter Cables 50m (MPO to 2xMPO12 Cable)

Product Details

Connector A MPO12 FemaleConnector B 2xMPO12 Female
Fiber Type OM4 50/125μm MultimodeWavelength 850/1300nm
Fiber Count 8 FibersDistance 50m (164ft)
Glass Fiber Corning ClearCurve®Cable Jacket LSZH
Polish Type APC to APCMinimum Bend Radius 7.5mm
Insertion Loss 0.35dB Max (0.15dB Typ.)Return Loss ≥35dB
Attenuation at 850nm ≤2.3 dB/kmAttenuation at 1300nm ≤0.6 dB/km
Cable Diameter 3.0mmFiber Color Violet
Installation Tensile Load 66 NLong-Term Tensile Load 50 N
Operating Temperature -10°C to +70°CStorage Temperature -40°C to +85°C


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall

our advantages

NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall

Short Lead Time

Fast Delivery
NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall

Professional Service

Technical Support
NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall

Premium Quality

High stability

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability. FiberMall adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall
3D Interferometer Test
NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall
End-Face Inspection
NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall
Insertion Loss and Return Loss Testing

Specifications

Connectors

NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall

Fiber Count

8 fibers

MPO-LC Harness Cables

NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall

12 fibers

MPO Trunk Cables / MPO-LC Harness Cables

NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall

24 fibers

MPO Trunk Cables

NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall

Fiber Type

NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall
OM3 50/125 MMF
Corning ClearCurve Multimode Fiber
NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall
OM4 50/125 MMF
Corning ClearCurve Multimode Fiber
NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall
OS2 9/125 SMF
Corning SMF-28 Ultra Optical Fiber

Gender Type

NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall
MPO Male With Pins
NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall
MPO Female Without Pins

Polarity Type

NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall

Packaging & Labeling

NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall
Single Package
NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall
Small Quantity Package
NVIDIA MFP7E20-N050 8 Fibers OM4 MM LSZH MPO Cable 50M | FiberMall
Bulk quantity package
