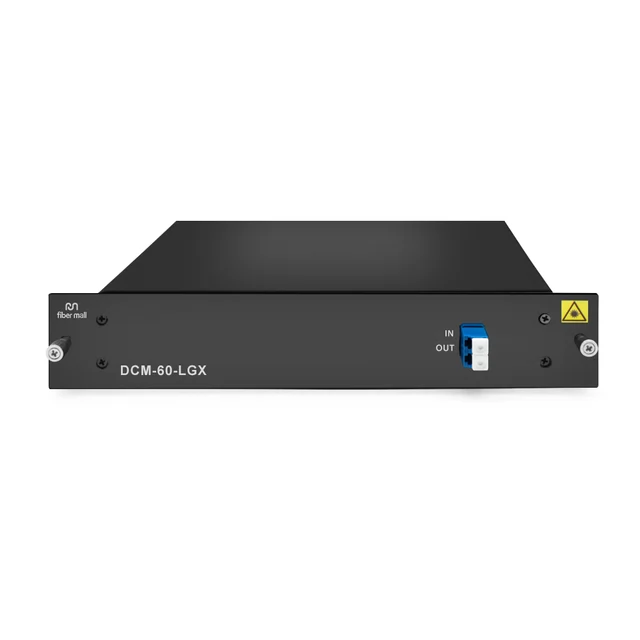

DCM 60km DCF-based Passive Dispersion Compensation Module, 6.8dB Low Loss, LC/UPC Connector

  • {{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }}

    {{parseInt(detail_data.left_num) ? 'In Stock' :detail_data.zeroStockOrder==0?'Out of Stock':'Available'}}

{{comment.count}} Reviews
SKU:40084
{{ detail_data.displayed_price.unit_prefix }}  {{ detail_data.displayed_price.value }} {{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}
Compensation Length
60km
FM PN:
DCM-60-LGX
Ship From:
Asia
Shipping:
{{ detail_data.displayed_price.unit_prefix }} {{now_chooseship.price}}
Free Shipping
Can't deliver
to United States Via {{now_chooseship?now_chooseship.name:''}}
Estimated delivery time : 3-5 working days. See details
Quantity:
( Min. Order {{detail_data.prodInfo.minimum_ordered_quantity}} )
Total Price:
{{detail_data.currency.unit_prefix}} {{detail_data.displayed_price.total}}
{{ detail_data.displayed_price.unit_prefix }} {{ detail_data.displayed_price.original_total_price }} ({{ detail_data.displayed_price.rate_of_discount }}% OFF) {{detail_data.displayed_price.ex_sell_type}}

Dispersion Optical Fiber Module Equivalent G.652 Compensation Distance 60km

Product Details

Compensation Distance 60kmWavelength Range C-Band (1525nm-1565nm)
Dispersion (ps/nm) -1020±30Relative Dispersion Slope 0.004±20%(nm-1)
Insertion Loss ≤ 6.8dBPolarization Mode Dispersion ≤ 1.0ps
Power Consumption 0WNominal Single-wave Input Optical Power ≤ 0dBm
Connector LC/UPCOccupied Slot Number 1 Slot
Working Temperature Range -10 ℃~+60℃ (Typical)Storage Temperature Range -40℃~+85℃


Quality Assurance

Excellent quality is the foundation of FiberMall' s survival and development. Our operation team are experts with many years' experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

DCM 60km Passive Dispersion Compensation Module - FiberMall

FM-OTN Systems

Save Optical Fiber In Huge Bandwidth Need

DCM 60km Passive Dispersion Compensation Module - FiberMall
40 channels system
Access capacity:80G
DCM 60km Passive Dispersion Compensation Module - FiberMall
40 channels system
Access capacity:160G
DCM 60km Passive Dispersion Compensation Module - FiberMall
40/48/80/96 channels system
Access capacity
400G 960G 4T 9.6T

WDM Gets Down To The Edge And Provides Limitless Bandwidth Resources In Limited Fiber

DCM 60km Passive Dispersion Compensation Module - FiberMall

FiberMall FM-OTN System Includes the Following Two Parts

Customized Solutions, Self-help Selection of Our FM-OTN System Function Modules

OTN Platform

DCM 60km Passive Dispersion Compensation Module - FiberMall
1 Main Chassis 1U/2U/5U
DCM 60km Passive Dispersion Compensation Module - FiberMall
2 Power Supply Module
DCM 60km Passive Dispersion Compensation Module - FiberMall
3 Network Management Unit

OTN Function Module

DCM 60km Passive Dispersion Compensation Module - FiberMall
Transponder (OEO)
DCM 60km Passive Dispersion Compensation Module - FiberMall
Amplifier Modules
DCM 60km Passive Dispersion Compensation Module - FiberMall
Dispersion Compensation
DCM 60km Passive Dispersion Compensation Module - FiberMall
Une Protection

our advantages

DCM 60km Passive Dispersion Compensation Module - FiberMall

Short Lead Time

Fast Delivery
DCM 60km Passive Dispersion Compensation Module - FiberMall

Professional Service

Technical Support
DCM 60km Passive Dispersion Compensation Module - FiberMall

Worry-Free Guarantee

Shopping Satisfactorily
DCM 60km Passive Dispersion Compensation Module - FiberMall

Premium Quality

High stability

Practical Application Demonstration

As a kind of transmission technology with huge capacity and long-distance coverage is now widely used in the backbone, convergence and access layer of metropolitan area network.


DCM 60km Passive Dispersion Compensation Module - FiberMall

DCM 60km Passive Dispersion Compensation Module - FiberMall

  1. DCM
